Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single

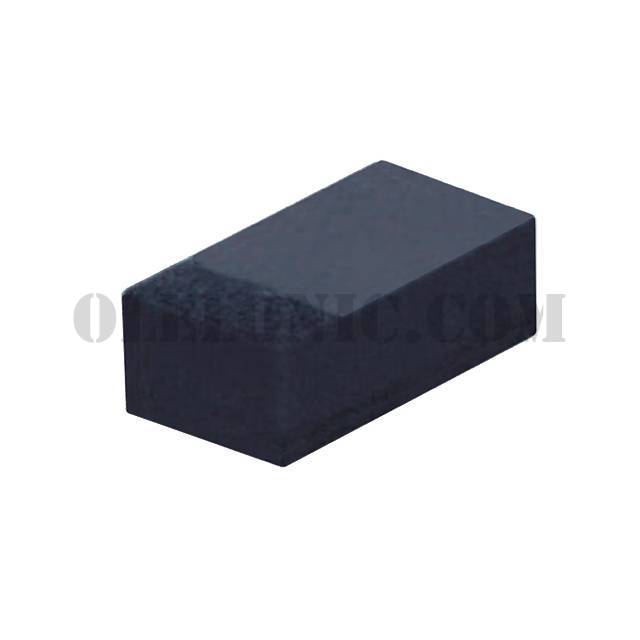

Datasheet	CDBURT0230LL-HF
Standard Package	4000
Manufacturer	Comchip Technology
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	20V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	390mV @ 200mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	30µA @ 10V
Capacitance @ Vr, F	30pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523F
Supplier Device Package	0603/SOD-523F
Operating Temperature - Junction	-55°C ~ 125°C
