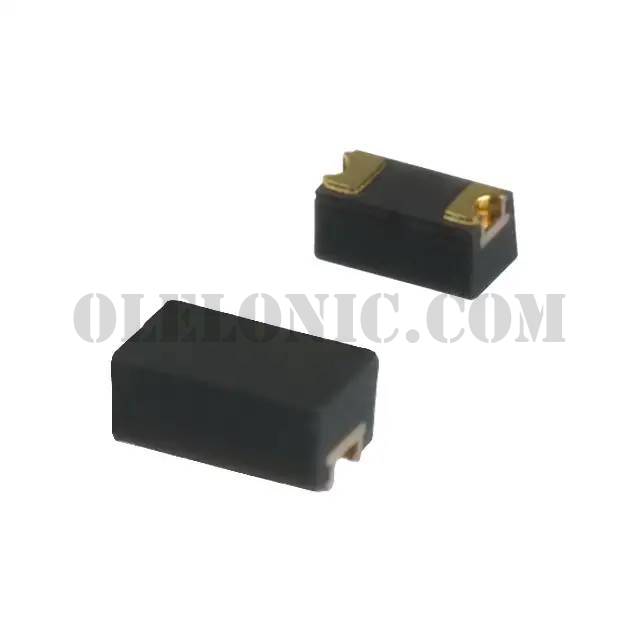

CDBU0230

CDBU0230

Part NumberCDBU0230

ManufacturerComchip Technology

DescriptionDIODE SCHOTTKY 30V 200MA 0603

DatasheetCDBU0230-HF

Package / Case2-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 200mA Surface Mount 0603C/SOD-523F

To learn about the specification of CDBU0230, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CDBU0230 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CDBU0230.
We are offering CDBU0230 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CDBU0230 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CDBU0230-HF
Standard Package	4000
Manufacturer	Comchip Technology
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	500mV @ 200mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	30µA @ 30V
Capacitance @ Vr, F	9pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead
Supplier Device Package	0603C/SOD-523F
Operating Temperature - Junction	125°C (Max)
Base Part Number	CDBU0230
