Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CDBQC0130L-HF
Standard Package	1
Manufacturer	Comchip Technology
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	100mA
Voltage - Forward (Vf) (Max) @ If	300mV @ 10mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	10µA @ 10V
Capacitance @ Vr, F	20pF @ 1V, 1MHz
Mounting Type	Surface Mount

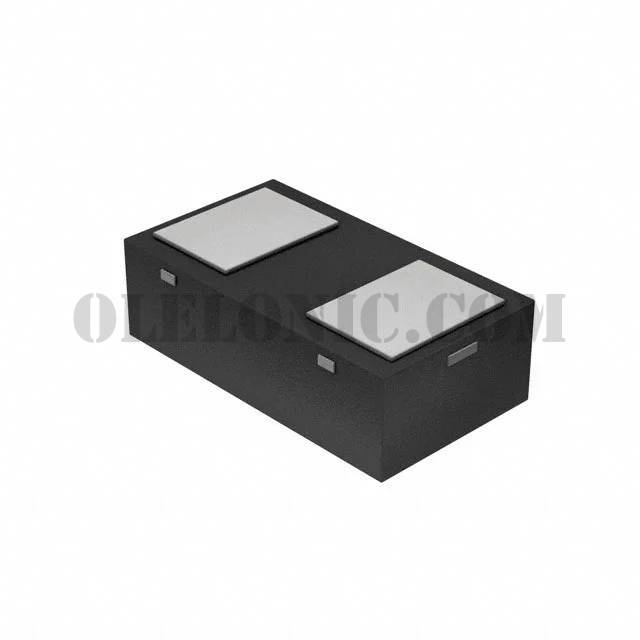

Package / Case	0402 (1005 Metric)
Supplier Device Package	0402C/SOD-923F
Operating Temperature - Junction	125°C (Max)
Base Part Number	CDBQC0130
