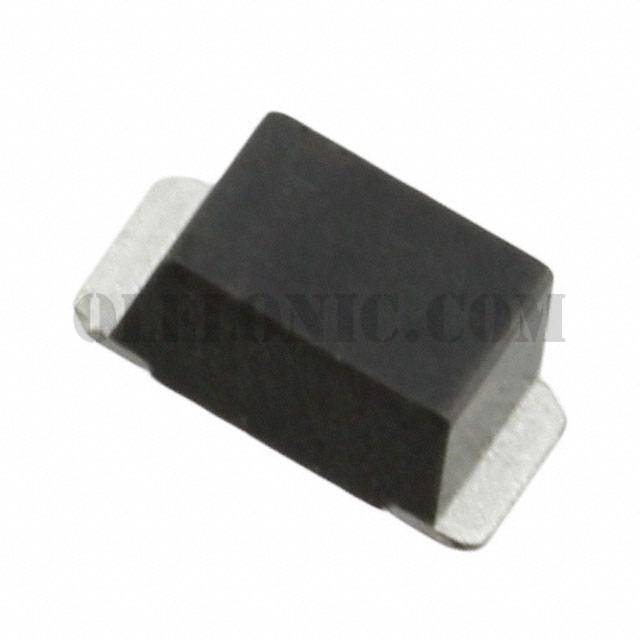

CDBM1100-G


CDBM1100-G

Part NumberCDBM1100-G

Manufacturer

Description

Datasheet

Package / CaseSOD-123T

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CDBM1100-G - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package1
ManufacturerComchip Technology
Series-
PackagingCut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)100V
Current - Average Rectified (Io)1A
Voltage - Forward (Vf) (Max) @ If850mV @ 1A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr500µA @ 100V
Capacitance @ Vr, F120pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-123T
Supplier Device PackageMini SMA/SOD-123
Operating Temperature - Junction-50°C ~ 150°C
Base Part NumberCDBM1100
