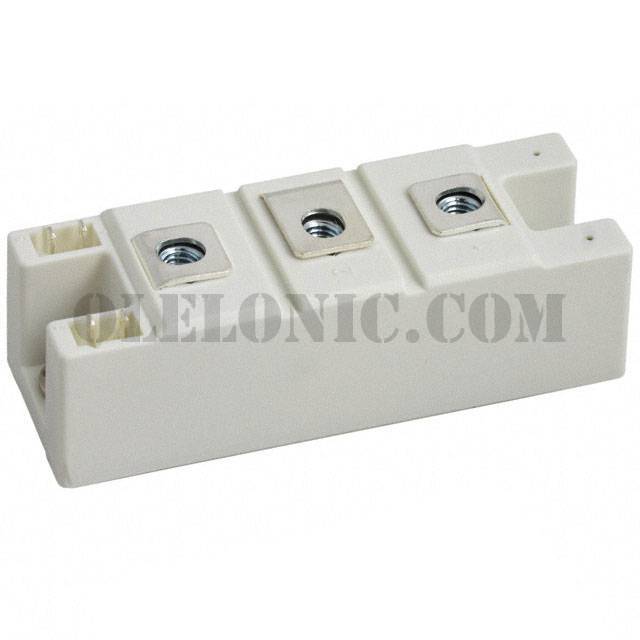

CD631615B

Part NumberCD631615B

ManufacturerPowerex Inc.

DescriptionSCR MOD DUAL 1600V 150A

DatasheetCD63xx15B

Package / CasePOW-R-BLOK™ Module

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionSCR Module 1.6kV 235A Series Connection - All SCRs Chassis Mount POW-R-BLOK™ Module

To learn about the specification of CD631615B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CD631615B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CD631615B.
We are offering CD631615B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CD631615B - Product Attributes

Categories

Discrete Semiconductor Products / Thyristors - SCRs - Modules

Datasheet

CD63xx15B

Standard Package

Manufacturer

Powerex Inc.

Series

Packaging

Bulk

Part Status

Active

Structure

Series Connection - All SCRs

Number of SCRs, Diodes

2 SCRs

Voltage - Off State

1.6kV

Current - On State (It (AV)) (Max)

160A

Current - On State (It (RMS)) (Max)

235A

Voltage - Gate Trigger (Vgt) (Max)

Current - Gate Trigger (Igt) (Max)

150mA

Current - Non Rep. Surge 50, 60Hz (Itsm)

5000A, 5250A

Current - Hold (Ih) (Max)

150mA

Operating Temperature

-40°C ~ 125°C (TJ)

Mounting Type

Chassis Mount

Package / Case

POW-R-BLOK™ Module
