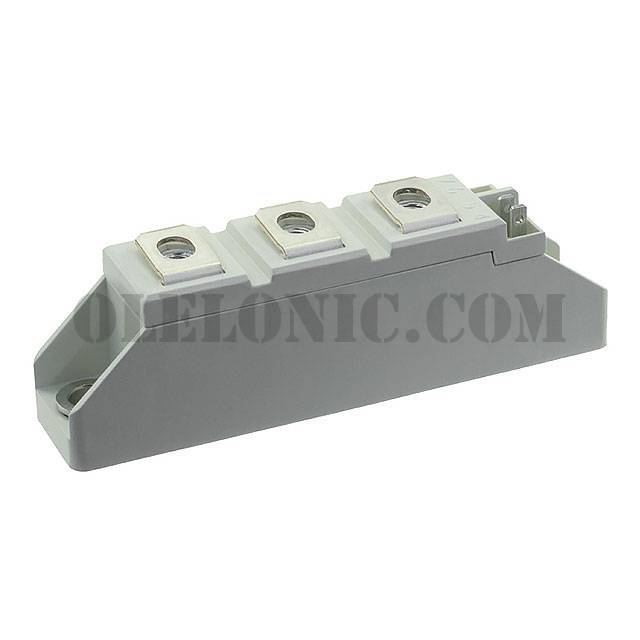

CD421690B

Part NumberCD421690B

ManufacturerPowerex Inc.

DescriptionSCR MOD ISO DUAL 1600V 90A

DatasheetCD4(2,7)xx90B

Package / CasePOW-R-BLOK™ Module

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionSCR Module 1.6kV 150A Series Connection - SCR/Diode Chassis Mount POW-R-BLOK™ Module

To learn about the specification of CD421690B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CD421690B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CD421690B.
We are offering CD421690B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CD421690B - Product Attributes

Categories

Discrete Semiconductor Products / Thyristors - SCRs - Modules

Datasheet

CD4(2,7)xx90B

Standard Package

Manufacturer

Powerex Inc.

Series

Packaging

Bulk

Part Status

Active

Structure

Series Connection - SCR/Diode

Number of SCRs, Diodes

1 SCR, 1 Diode

Voltage - Off State

1.6kV

Current - On State (It (AV)) (Max)

95A

Current - On State (It (RMS)) (Max)

150A

Voltage - Gate Trigger (Vgt) (Max)

Current - Gate Trigger (Igt) (Max)

150mA

Current - Non Rep. Surge 50, 60Hz (Itsm)

2000A, 2100A

Current - Hold (Ih) (Max)

250mA

Operating Temperature

-40°C ~ 125°C (TJ)

Mounting Type

Chassis Mount

Package / Case

POW-R-BLOK™ Module
