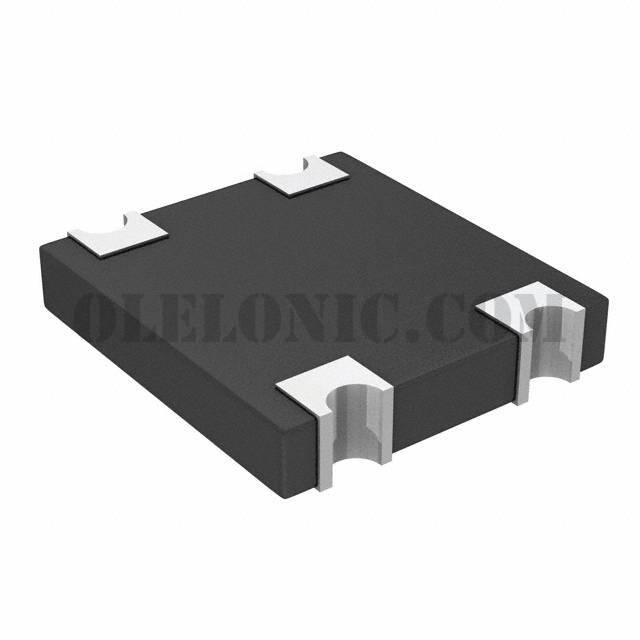

CD2320-B11000

Part NumberCD2320-B11000

ManufacturerBourns Inc.

DescriptionBRIDGE RECT 1PHASE 1KV 1A 2320

DatasheetCD2320-B1 Series

Package / CaseChip, Concave Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBridge Rectifier Single Phase Schottky 1kV Surface Mount 2320

To learn about the specification of CD2320-B11000, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CD2320-B11000 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CD2320-B11000.
We are offering CD2320-B11000 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CD2320-B11000 - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Bridge Rectifiers

Datasheet

CD2320-B1 Series

Standard Package

Manufacturer

Bourns Inc.

Series

Packaging

Cut Tape (CT)

Part Status

Obsolete

Diode Type

Single Phase

Technology

Schottky

Voltage - Peak Reverse (Max)

1kV

Current - Average Rectified (Io)

Voltage - Forward (Vf) (Max) @ If

1V @ 1A

Current - Reverse Leakage @ Vr

5µA @ 1000V

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Surface Mount

Package / Case

Chip, Concave Terminals

Supplier Device Package

2320

Base Part Number

CD2320
