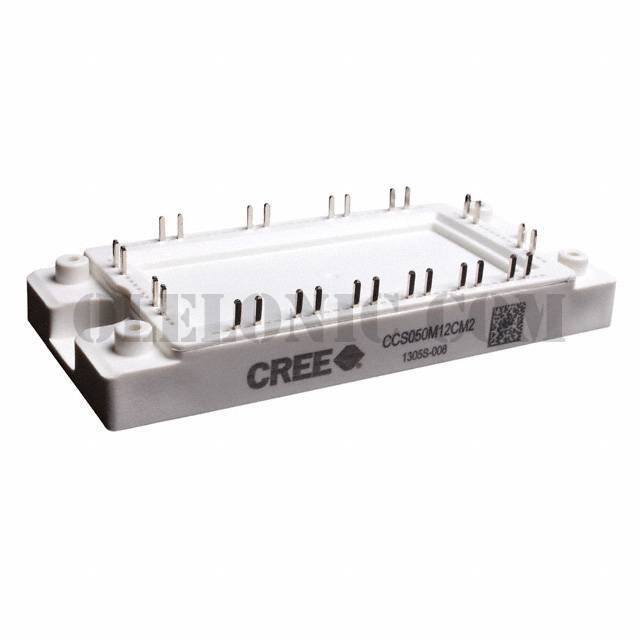

CCS050M12CM2

Part NumberCCS050M12CM2

ManufacturerCree/Wolfspeed

DescriptionMOSFET 6N-CH 1200V 87A MODULE

DatasheetCCS050M12CM2

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 6 N-Channel (3-Phase Bridge) 1200V (1.2kV) 87A (Tc) 337W Chassis Mount Module

To learn about the specification of CCS050M12CM2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CCS050M12CM2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CCS050M12CM2.
We are offering CCS050M12CM2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CCS050M12CM2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CCS050M12CM2
Standard Package	1
Manufacturer	Cree/Wolfspeed
Series	Z-FET™ Z-Rec™
Packaging	Bulk
Part Status	Active
FET Type	6 N-Channel (3-Phase Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	87A (Tc)
Rds On (Max) @ Id, Vgs	34mOhm @ 50A, 20V
Vgs(th) (Max) @ Id	2.3V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs	180nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	2.810nF @ 800V
Power - Max	337W
Operating Temperature	150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
