Categories	Capacitors / Ceramic Capacitors
Datasheet	CC45 Series
Standard Package	1000
Manufacturer	TDK Corporation
Series	CC45
Packaging	Bulk
Part Status	Active
Capacitance	15pF
Tolerance	±5%
Voltage - Rated	6000V (6kV)
Temperature Coefficient	SL
Operating Temperature	-25°C ~ 125°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.295" Dia (7.50mm)
Height - Seated (Max)	0.453" (11.50mm)
Thickness (Max)	-
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked

CC45SL3JD150JYNNA	TDK Corporation, 15pF ±5% 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD101JYGNA	TDK Corporation, 100pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD470JYNNA	TDK Corporation, 47pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD220JYNNA	TDK Corporation, 22pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD270JYNNA	TDK Corporation, 27pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD331JYNNA	TDK Corporation, 330pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD560JYNNA	TDK Corporation, 56pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD150JYNNA	TDK Corporation, 15pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD470JYNNA	TDK Corporation, 47pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD120JYNNA	TDK Corporation, 12pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3JD050DYGNA	TDK Corporation, 5pF ±0.5pF 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3JD050DYVNA	TDK Corporation, 5pF ±0.5pF 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View

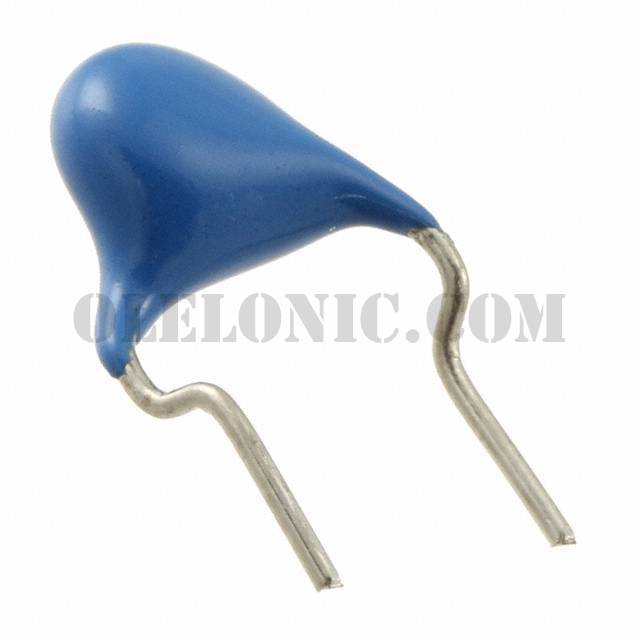

CC45SL3JD150JYNNA

Part NumberCC45SL3JD150JYNNA
