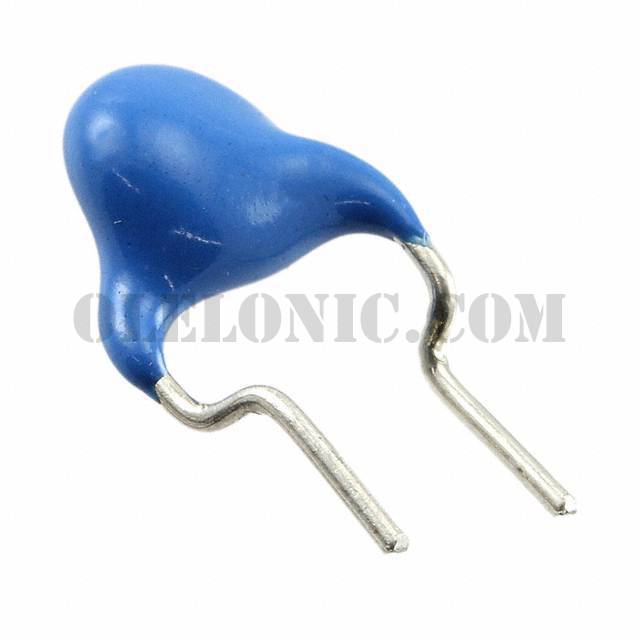

Categories	Capacitors / Ceramic Capacitors
Datasheet	CC45 Series
Standard Package	1000
Manufacturer	TDK Corporation
Series	CC45
Packaging	Bulk
Part Status	Active
Capacitance	22pF
Tolerance	±5%
Voltage - Rated	2000V (2kV)
Temperature Coefficient	SL
Operating Temperature	-25°C ~ 125°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.217" Dia (5.50mm)
Height - Seated (Max)	0.374" (9.50mm)
Thickness (Max)	-
Lead Spacing	0.197" (5.00mm)
Lead Style	Formed Leads - Kinked

CC45SL3AD220JYNNA	TDK Corporation, 22pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3JD220JYGNA	TDK Corporation, 22pF ±5% 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD470JYVNA	TDK Corporation, 47pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3JD050DYVNA	TDK Corporation, 5pF ±0.5pF 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD391JYNNA	TDK Corporation, 390pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD390JYGNA	TDK Corporation, 39pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD390JYGNA	TDK Corporation, 39pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD330JYNNA	TDK Corporation, 33pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD820JYVNA	TDK Corporation, 82pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD221JYVNA	TDK Corporation, 220pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD470JYNNA	TDK Corporation, 47pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3JD390JYNNA	TDK Corporation, 39pF ±5% 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View

CC45SL3DD220JYNNA

Part NumberCC45SL3DD220JYNNA
