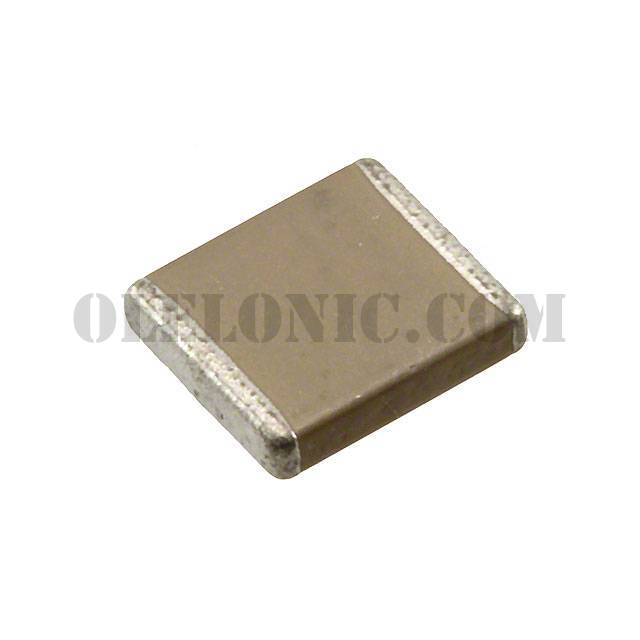

Categories	Capacitors / Ceramic Capacitors
Datasheet	Gen Purpose & High Capacitance Class 2, X7R
Standard Package	1500
Manufacturer	Yageo
Series	CC
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	1µF
Tolerance	±10%
Voltage - Rated	50V
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	-
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	2220 (5750 Metric)
Size / Dimension	0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max)	-
Thickness (Max)	0.049" (1.25mm)
Lead Spacing	-
Lead Style	-
