Categories	Capacitors / Ceramic Capacitors
Datasheet	CC Series, NPO/X7R, 1KV to 3KV
Standard Package	1
Manufacturer	Yageo
Series	CC
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	4700pF
Tolerance	±10%
Voltage - Rated	2000V (2kV)
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	-
Ratings	-
Applications	General Purpose
Failure Rate	-

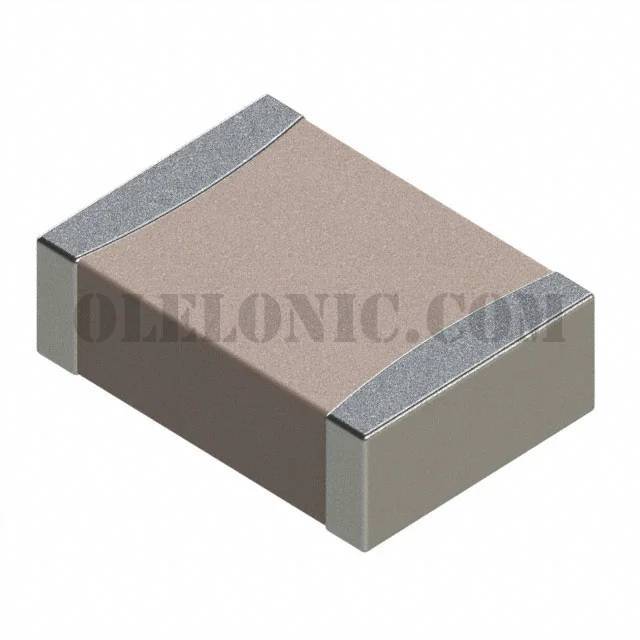

Mounting Type	Surface Mount, MLCC
Package / Case	1812 (4532 Metric)
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	-
Thickness (Max)	0.059" (1.50mm)
Lead Spacing	-
Lead Style	-

CC0603CRNPO9BN7R0	Yageo, 7pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CC	View
CC0603JRNPO7BN221	Yageo, 220pF ±5% 16V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CC	View
CC1206JRX7R9BB333	Yageo, 0.033µF ±5% 50V Ceramic Capacitor X7R 1206 (3216 Metric), CC	View
CC1206JRNPO9BN120	Yageo, 12pF ±5% 50V Ceramic Capacitor C0G, NP0 1206 (3216 Metric), CC	View
CC0603CRNPO9BN1R2	Yageo, 1.2pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CC	View
CC0805CRNPO9BN5R0	Yageo, 5pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), CC	View
CC0603BRNPO9BN2R2	Yageo, 2.2pF ±0.1pF 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CC	View
CC0805CRNPO9BN4R7	Yageo, 4.7pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), CC	View
CC0805JKNPO8BN472	Yageo, 4700pF ±5% 25V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), CC	View
CC0603KRX5R6BB474	Yageo, 0.47µF ±10% 10V Ceramic Capacitor X5R 0603 (1608 Metric), CC	View
CC0402JRNPO8BN680	Yageo, 68pF ±5% 25V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CC	View
CC1206KKX7R7BB225	Yageo, 2.2µF ±10% 16V Ceramic Capacitor X7R 1206 (3216 Metric), CC	View

CC1812KKX7RDBB472

Part NumberCC1812KKX7RDBB472
