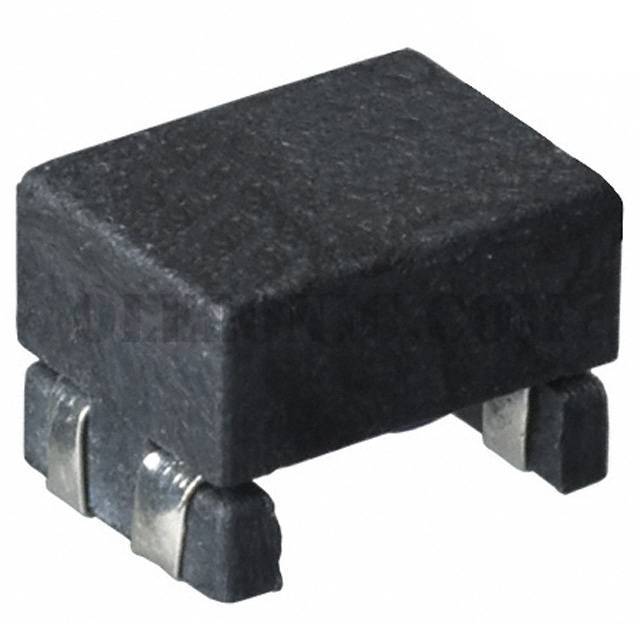

CC1812C513R-00

Part NumberCC1812C513R-00

ManufacturerLaird-Signal Integrity Products

DescriptionCMC 51UH 200MA 2LN 3.5 KOHM SMD

DatasheetCC1812C513R-00

Package / CaseHorizontal, 4 Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description51µH @ 100kHz 2 Line Common Mode Choke Surface Mount 3.5 kOhms @ 40MHz 200mA DCR 500mOhm

To learn about the specification of CC1812C513R-00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CC1812C513R-00 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CC1812C513R-00.
We are offering CC1812C513R-00 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CC1812C513R-00 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

CC1812C513R-00

Standard Package

Manufacturer

Laird-Signal Integrity Products

Series

Packaging

Cut Tape (CT)

Part Status

Obsolete

Filter Type

Signal Line

Number of Lines

Impedance @ Frequency

3.5 kOhms @ 40MHz

Inductance @ Frequency

51µH @ 100kHz

Current Rating (Max)

200mA

DC Resistance (DCR) (Max)

500mOhm

Voltage Rating - DC

80V

Voltage Rating - AC

42V

Operating Temperature

-40°C ~ 125°C

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.197" L x 0.138" W (5.00mm x 3.50mm)

Height (Max)

0.140" (3.55mm)

Package / Case

Horizontal, 4 Flat Lead
