Categories	Capacitors / Ceramic Capacitors
Datasheet	CC Series, Class 2 X7R Datasheet
Standard Package	2000
Manufacturer	Yageo
Series	CC
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	1µF
Tolerance	±5%
Voltage - Rated	50V
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	1206 (3216 Metric)
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	-
Thickness (Max)	0.071" (1.80mm)
Lead Spacing	-
Lead Style	-

CC0100KRX5R5BB103	Yageo, 10000pF ±10% 6.3V Ceramic Capacitor X5R 01005 (0402 Metric), CC	View
CC0402GRNPO9BN150	Yageo, 15pF ±2% 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CC	View
CC0603JRNPO9BN821	Yageo, 820pF ±5% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CC	View
CC0603CRNPO9BN3R5	Yageo, 3.5pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CC	View
CC0201DRNPO9BN8R2	Yageo, 8.2pF ±0.5pF 50V Ceramic Capacitor C0G, NP0 0201 (0603 Metric), CC	View
CC0201BRNPO8BN1R2	Yageo, 1.2pF ±0.1pF 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric), CC	View
CC0603JRNPO0BN561	Yageo, 560pF ±5% 100V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CC	View
CC0603JRX7R9BB103	Yageo, 10000pF ±5% 50V Ceramic Capacitor X7R 0603 (1608 Metric), CC	View
CC1206CRNPO9BN4R7	Yageo, 4.7pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 1206 (3216 Metric), CC	View
CC0402CRNPO9BN5R1	Yageo, 5.1pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CC	View
CC0402KRX7R9BB223	Yageo, 0.022µF ±10% 50V Ceramic Capacitor X7R 0402 (1005 Metric), CC	View
CC0603KRX7R6BB102	Yageo, 1000pF ±10% 10V Ceramic Capacitor X7R 0603 (1608 Metric), CC	View

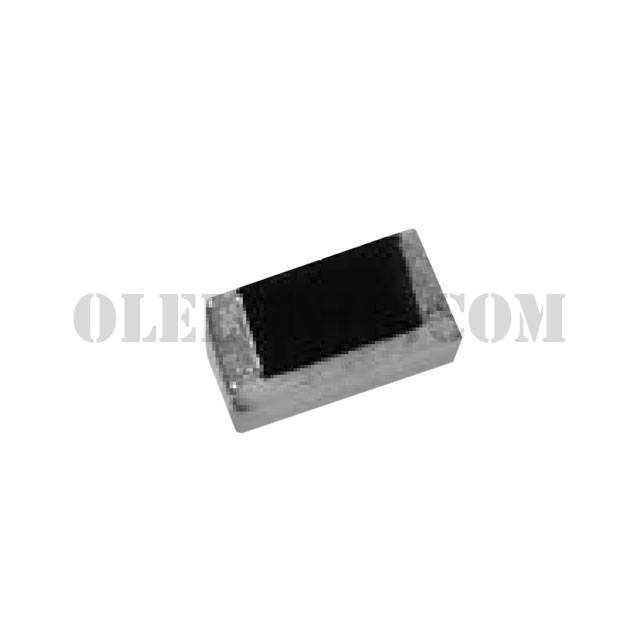

CC1206JKX7R9BB105

Part NumberCC1206JKX7R9BB105
