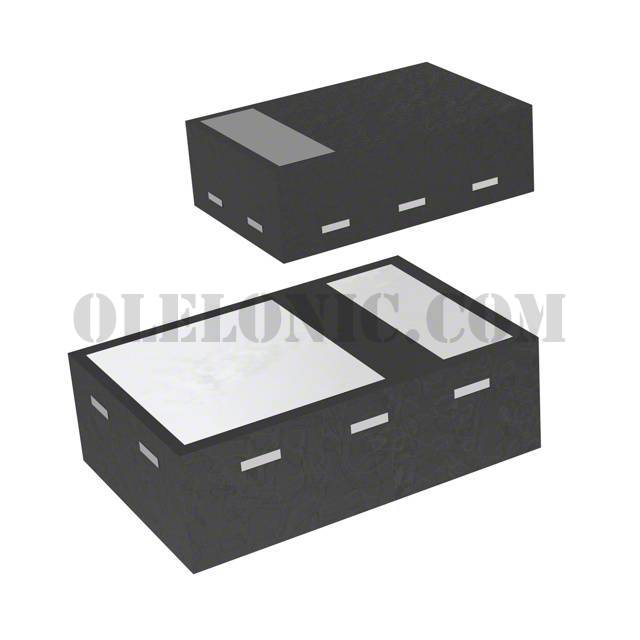

CBS05F30(TPL3)

Part NumberCBS05F30(TPL3)

ManufacturerToshiba Semiconductor and Storage

DescriptionDIODE SCHOTTKY 30V 500MA CST2B

DatasheetCBS05F30

Package / Case2-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 500mA Surface Mount CST2B

To learn about the specification of CBS05F30(TPL3), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CBS05F30(TPL3) with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CBS05F30(TPL3).
We are offering CBS05F30(TPL3) for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CBS05F30(TPL3) - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

CBS05F30

Standard Package

Manufacturer

Toshiba Semiconductor and Storage

Series

Packaging

Cut Tape (CT)

Part Status

Discontinued at Digi-Key

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

30V

Current - Average Rectified (Io)

500mA

Voltage - Forward (Vf) (Max) @ If

450mV @ 500mA

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr

50µA @ 30V

Capacitance @ Vr, F

118pF @ 0V, 1MHz

Mounting Type

Surface Mount

Package / Case

2-SMD, No Lead

Supplier Device Package

CST2B

Operating Temperature - Junction

125°C (Max)

Base Part Number
