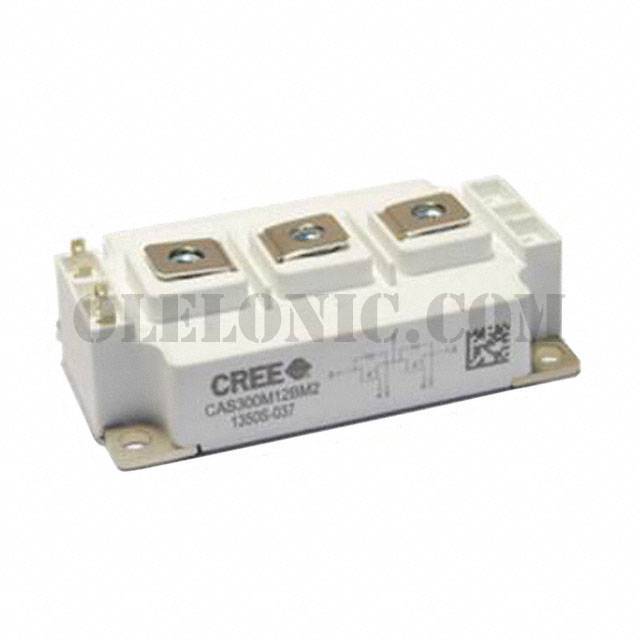

CAS300M12BM2

Part NumberCAS300M12BM2

ManufacturerCree/Wolfspeed

DescriptionMOSFET 2N-CH 1200V 404A MODULE

DatasheetCAS300M12BM2

Package / CaseModule, Screw Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 1200V (1.2kV) 423A (Tc) 1660W Chassis Mount Module

To learn about the specification of CAS300M12BM2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CAS300M12BM2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CAS300M12BM2.
We are offering CAS300M12BM2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CAS300M12BM2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CAS300M12BM2
Standard Package	1
Manufacturer	Cree/Wolfspeed
Series	Z-FET™
Packaging	Bulk
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	423A (Tc)
Rds On (Max) @ Id, Vgs	5.7mOhm @ 300A, 20V
Vgs(th) (Max) @ Id	2.3V @ 15mA (Typ)
Gate Charge (Qg) (Max) @ Vgs	1025nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	11700pF @ 600V
Power - Max	1660W
Operating Temperature	150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module, Screw Terminals
Supplier Device Package	Module
