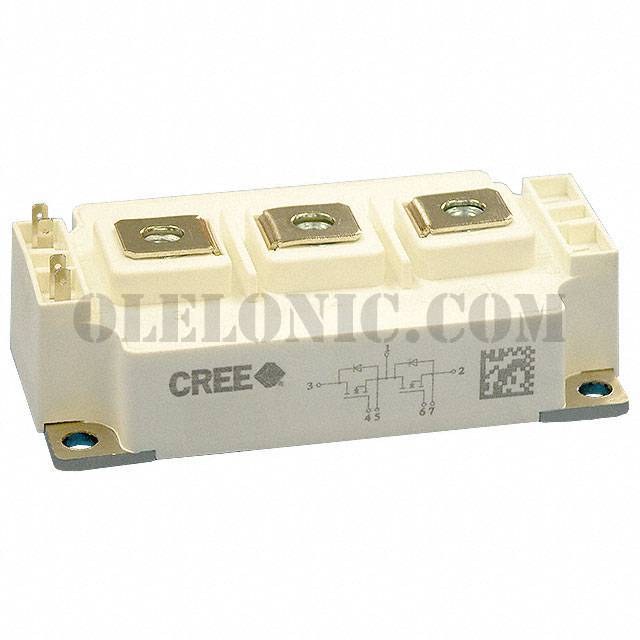

CAS120M12BM2

Part NumberCAS120M12BM2

ManufacturerCree/Wolfspeed

DescriptionMOSFET 2N-CH 1200V 193A MODULE

DatasheetCAS120M12BM2 Datasheet

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 1200V (1.2kV) 193A (Tc) 925W Chassis Mount Module

To learn about the specification of CAS120M12BM2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CAS120M12BM2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CAS120M12BM2.
We are offering CAS120M12BM2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CAS120M12BM2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CAS120M12BM2 Datasheet
Standard Package	1
Manufacturer	Cree/Wolfspeed
Series	Z-Rec®
Packaging	Bulk
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	193A (Tc)
Rds On (Max) @ Id, Vgs	16mOhm @ 120A, 20V
Vgs(th) (Max) @ Id	2.6V @ 6mA (Typ)
Gate Charge (Qg) (Max) @ Vgs	378nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	6300pF @ 1000V
Power - Max	925W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
