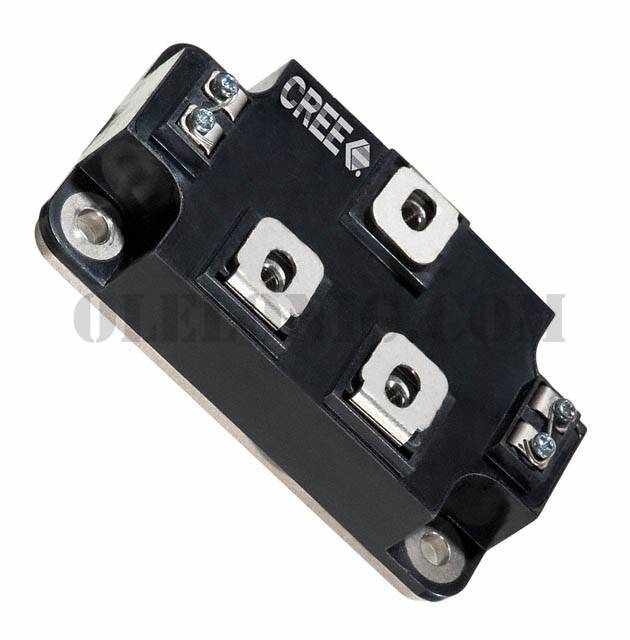

CAS100H12AM1

Part NumberCAS100H12AM1

ManufacturerCree/Wolfspeed

DescriptionMOSFET 2N-CH 1200V 168A MODULE

DatasheetCAS100H12AM1

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 1200V (1.2kV) 168A 568W Chassis Mount Module

To learn about the specification of CAS100H12AM1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CAS100H12AM1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CAS100H12AM1.
We are offering CAS100H12AM1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CAS100H12AM1 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

CAS100H12AM1

Standard Package

Manufacturer

Cree/Wolfspeed

Series

Z-FET™

Packaging

Bulk

Part Status

Obsolete

FET Type

2 N-Channel (Half Bridge)

FET Feature

Standard

Drain to Source Voltage (Vdss)

1200V (1.2kV)

Current - Continuous Drain (Id) @ 25°C

168A

Rds On (Max) @ Id, Vgs

20mOhm @ 20A, 20V

Vgs(th) (Max) @ Id

3.1V @ 50mA

Gate Charge (Qg) (Max) @ Vgs

Input Capacitance (Ciss) (Max) @ Vds

9500pF @ 800V

Power - Max

568W

Operating Temperature

Mounting Type

Chassis Mount

Package / Case

Module

Supplier Device Package

Module
