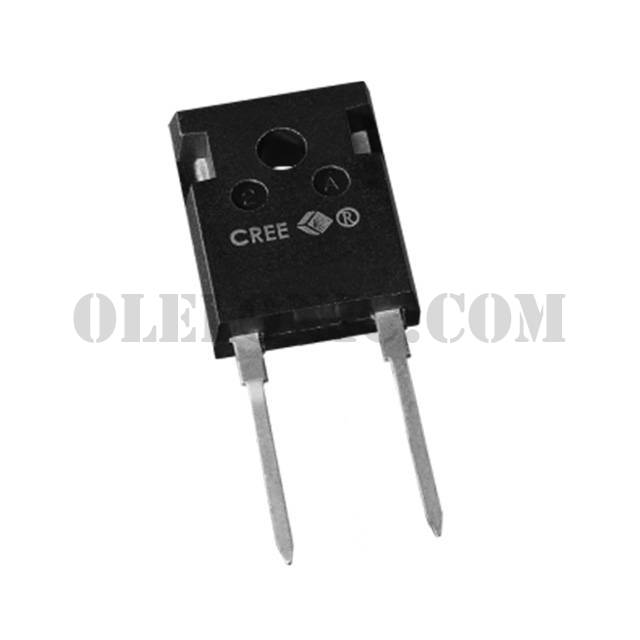

C4D20120H

C4D20120H

Part NumberC4D20120H

ManufacturerCree/Wolfspeed

DescriptionZRECTM 20A 1200V SIC SCHOTTKY DI

DatasheetC4D20120H

Package / CaseTO-247-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Silicon Carbide Schottky 1200V 54A (DC) Through Hole TO-247-2

To learn about the specification of C4D20120H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C4D20120H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C4D20120H.
We are offering C4D20120H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

C4D20120H - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	C4D20120H
Standard Package	30
Manufacturer	Cree/Wolfspeed
Series	Z-Rec®
Packaging	Tube
Part Status	Active
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	54A (DC)
Voltage - Forward (Vf) (Max) @ If	1.8V @ 20A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0ns
Current - Reverse Leakage @ Vr	200µA @ 1200V
Capacitance @ Vr, F	1.5nF @ 0V, 1MHz
Mounting Type	Through Hole
Package / Case	TO-247-2
Supplier Device Package	TO-247-2
Operating Temperature - Junction	-55°C ~ 175°C
