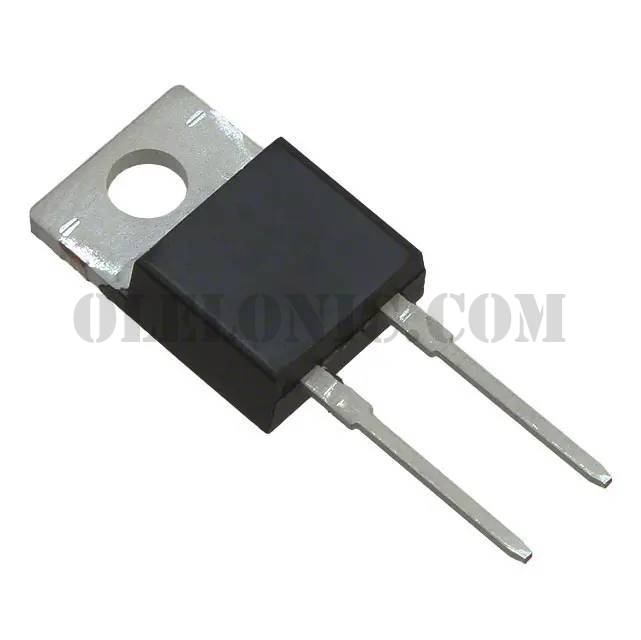

C4D10120A

C4D10120A

Part NumberC4D10120A

ManufacturerCree/Wolfspeed

DescriptionDIODE SCHOTTKY 1.2KV 10A TO220-2

DatasheetC4D10120A

Package / CaseTO-220-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Silicon Carbide Schottky 1200V 33A (DC) Through Hole TO-220-2

To learn about the specification of C4D10120A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C4D10120A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C4D10120A.
We are offering C4D10120A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

C4D10120A - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	C4D10120A
Standard Package	50
Manufacturer	Cree/Wolfspeed
Series	Z-Rec®
Packaging	Tube
Part Status	Active
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	33A (DC)
Voltage - Forward (Vf) (Max) @ If	1.8V @ 10A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0ns
Current - Reverse Leakage @ Vr	250µA @ 1200V
Capacitance @ Vr, F	754pF @ 0V, 1MHz
Mounting Type	Through Hole
Package / Case	TO-220-2
Supplier Device Package	TO-220-2
Operating Temperature - Junction	-55°C ~ 175°C
