C3D06060G


C3D06060G

Part NumberC3D06060G

Manufacturer

Description

Datasheet

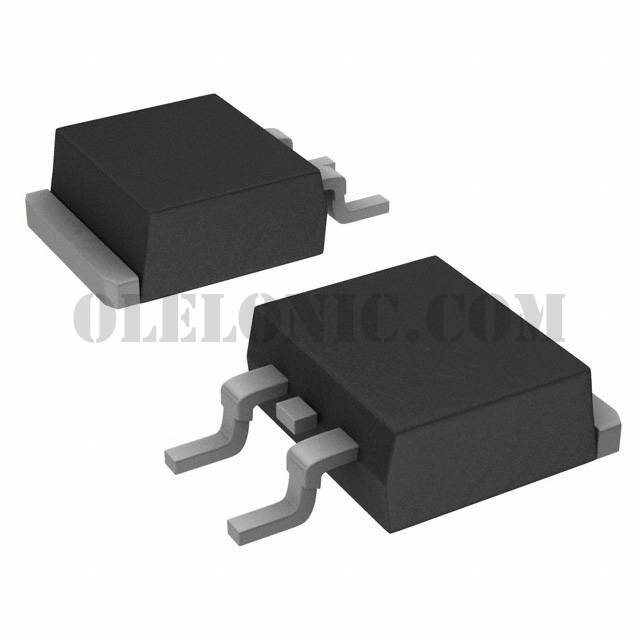

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

C3D06060G - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package50
ManufacturerCree/Wolfspeed
SeriesZ-Rec®
PackagingTube
Part StatusActive
Diode TypeSilicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)600V
Current - Average Rectified (Io)19A (DC)
Voltage - Forward (Vf) (Max) @ If1.7V @ 6A
SpeedNo Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)0ns
Current - Reverse Leakage @ Vr50µA @ 600V
Capacitance @ Vr, F295pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device PackageTO-263-2
Operating Temperature - Junction-55°C ~ 175°C
