Categories	Capacitors / Ceramic Capacitors
Datasheet	Goldmax Z5U, 300 Series
Standard Package	100
Manufacturer	KEMET
Series	GoldMax 300 Comm Z5U
Packaging	Bulk
Part Status	Active
Capacitance	0.47µF
Tolerance	±20%
Voltage - Rated	100V
Temperature Coefficient	Z5U
Operating Temperature	-10°C ~ 85°C
Features	-
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.290" L x 0.160" W (7.36mm x 4.07mm)
Height - Seated (Max)	0.400" (10.16mm)
Thickness (Max)	-
Lead Spacing	0.200" (5.08mm)
Lead Style	Formed Leads

C322C224M5U5TA7301	KEMET, 0.22µF ±20% 50V Ceramic Capacitor Z5U Radial, GoldMax 300 Comm Z5U	View
C320C474M5U5TA7301	KEMET, 0.47µF ±20% 50V Ceramic Capacitor Z5U Radial, GoldMax 300 Comm Z5U	View
C315C103M5U5TA7301	KEMET, 10000pF ±20% 50V Ceramic Capacitor Z5U Radial, GoldMax 300 Comm Z5U	View
C340C105M1U5TA	KEMET, 1µF ±20% 100V Ceramic Capacitor Z5U Radial, GoldMax 300 Comm Z5U	View
C317C683M5U5TA	KEMET, 0.068µF ±20% 50V Ceramic Capacitor Z5U Radial, GoldMax 300 Comm Z5U	View
C322C104M5U5TA	KEMET, 0.1µF ±20% 50V Ceramic Capacitor Z5U Radial, GoldMax 300 Comm Z5U	View
C322C474M5U5TA7301	KEMET, 0.47µF ±20% 50V Ceramic Capacitor Z5U Radial, GoldMax 300 Comm Z5U	View
C317C223M5U5TA7301	KEMET, 0.022µF ±20% 50V Ceramic Capacitor Z5U Radial, GoldMax 300 Comm Z5U	View
C320C103M1U5TA	KEMET, 10000pF ±20% 100V Ceramic Capacitor Z5U Radial, GoldMax 300 Comm Z5U	View
C330C224M1U5TA	KEMET, 0.22µF ±20% 100V Ceramic Capacitor Z5U Radial, GoldMax 300 Comm Z5U	View
C315C223M5U5TA	KEMET, 0.022µF ±20% 50V Ceramic Capacitor Z5U Radial, GoldMax 300 Comm Z5U	View
C315C152M1U5TA	KEMET, 1500pF ±20% 100V Ceramic Capacitor Z5U Radial, GoldMax 300 Comm Z5U	View

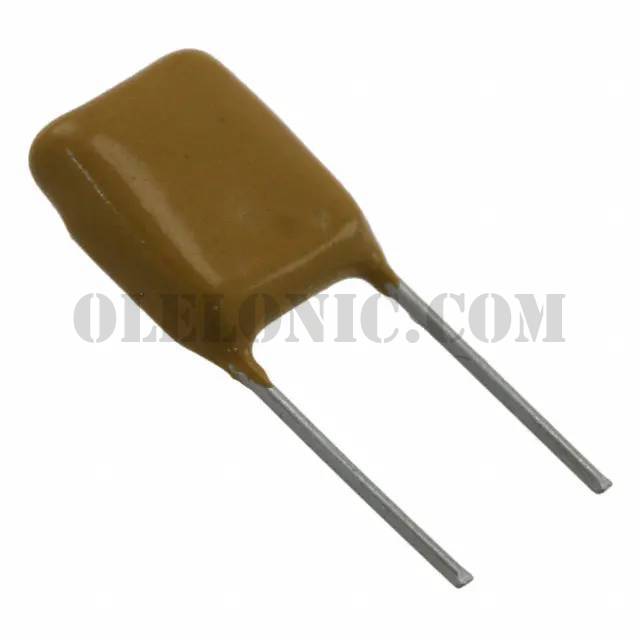

C340C474M1U5TA

Part NumberC340C474M1U5TA
