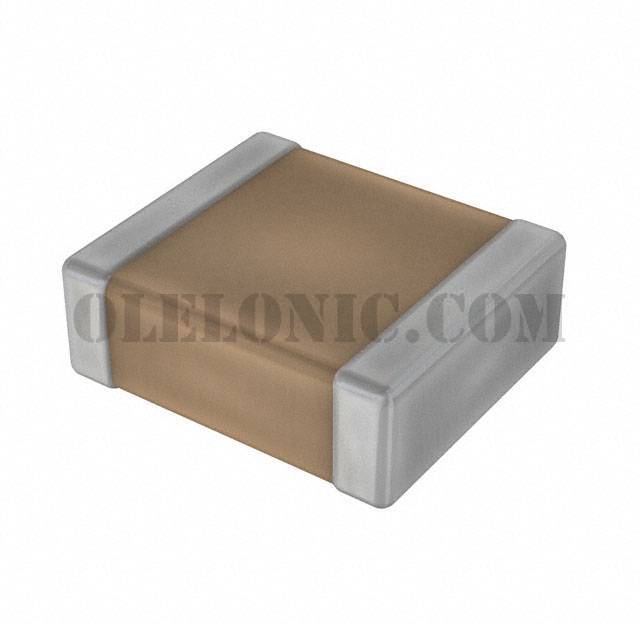

Categories	Capacitors / Ceramic Capacitors
Datasheet	HV FT-CAP, C0G Dielectric, Automotive
Standard Package	1
Manufacturer	KEMET
Series	SMD Auto C0G HV
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	0.056µF
Tolerance	±5%
Voltage - Rated	500V
Temperature Coefficient	C0G, NP0
Operating Temperature	-55°C ~ 125°C
Features	Low ESL, High Voltage
Ratings	AEC-Q200
Applications	Automotive
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	2824 (7260 Metric)
Size / Dimension	0.280" L x 0.240" W (7.10mm x 6.10mm)
Height - Seated (Max)	-
Thickness (Max)	0.106" (2.70mm)
Lead Spacing	-
Lead Style	-
