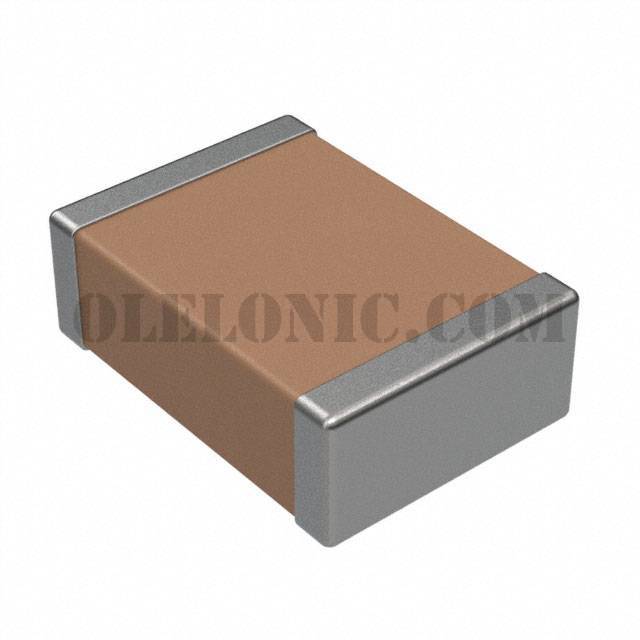

Categories	Capacitors / Ceramic Capacitors
Datasheet	High Voltage C0G Dielectric, Commercial
Standard Package	1
Manufacturer	KEMET
Series	SMD Comm C0G HV
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	680pF
Tolerance	±5%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	C0G, NP0
Operating Temperature	-55°C ~ 125°C
Features	Low ESL, High Voltage
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	1812 (4532 Metric)
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	-
Thickness (Max)	0.061" (1.55mm)
Lead Spacing	-
Lead Style	-

C1210C101KDGACTU	KEMET, 100pF ±10% 1000V (1kV) Ceramic Capacitor C0G, NP0 1210 (3225 Metric), SMD Comm C0G HV	View
C1812C101FHGAC7800	KEMET, 100pF ±1% 3000V (3kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric), SMD Comm C0G HV	View
C1825C472JBGACTU	KEMET, 4700pF ±5% 630V Ceramic Capacitor C0G, NP0 1825 (4564 Metric), SMD Comm C0G HV	View
C1206C221JBGAC7800	KEMET, 220pF ±5% 630V Ceramic Capacitor C0G, NP0 1206 (3216 Metric), SMD Comm C0G HV	View
C1812C103JBGAC7800	KEMET, 10000pF ±5% 630V Ceramic Capacitor C0G, NP0 1812 (4532 Metric), SMD Comm C0G HV	View
C1808C100KHGACTU	KEMET, 10pF ±10% 3000V (3kV) Ceramic Capacitor C0G, NP0 1808 (4520 Metric), SMD Comm C0G HV	View
C1812C361JZGACTU	KEMET, 360pF ±5% 2500V (2.5kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric), SMD Comm C0G HV	View
C1812C331JZGACTU	KEMET, 330pF ±5% 2500V (2.5kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric), SMD Comm C0G HV	View
C1210C272KCGACTU	KEMET, 2700pF ±10% 500V Ceramic Capacitor C0G, NP0 1210 (3225 Metric), SMD Comm C0G HV	View
C2220C332JDGACTU	KEMET, 3300pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 2220 (5750 Metric), SMD Comm C0G HV	View
C1812C472JDGACTU	KEMET, 4700pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric), SMD Comm C0G HV	View
C1812C331JDGACTU	KEMET, 330pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric), SMD Comm C0G HV	View

C1812C681JDGAC7800

Part NumberC1812C681JDGAC7800
