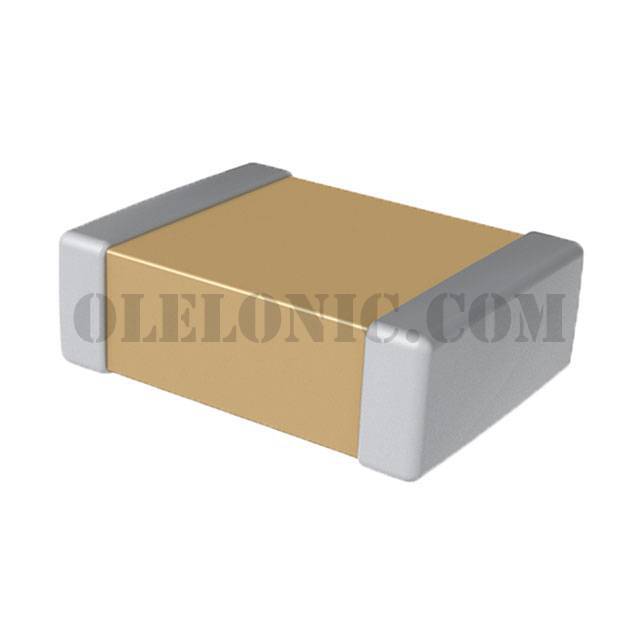

Categories	Capacitors / Ceramic Capacitors
Datasheet	High Voltage C0G Dielectric, Commercial
Standard Package	1
Manufacturer	KEMET
Series	SMD Comm C0G HV
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10000pF
Tolerance	±5%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	C0G, NP0
Operating Temperature	-55°C ~ 125°C
Features	Low ESL, High Voltage
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	1210 (3225 Metric)
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	-
Thickness (Max)	0.110" (2.80mm)
Lead Spacing	-
Lead Style	-

C0805C470JCGAC7800	KEMET, 47pF ±5% 500V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), SMD Comm C0G HV	View
C1812C200JCGACTU	KEMET, 20pF ±5% 500V Ceramic Capacitor C0G, NP0 1812 (4532 Metric), SMD Comm C0G HV	View
C1206C202JCGAC7800	KEMET, 2000pF ±5% 500V Ceramic Capacitor C0G, NP0 1206 (3216 Metric), SMD Comm C0G HV	View
C1206C560JDGACTU	KEMET, 56pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 1206 (3216 Metric), SMD Comm C0G HV	View
C1206C330KDGACTU	KEMET, 33pF ±10% 1000V (1kV) Ceramic Capacitor C0G, NP0 1206 (3216 Metric), SMD Comm C0G HV	View
C1808C332JBGACTU	KEMET, 3300pF ±5% 630V Ceramic Capacitor C0G, NP0 1808 (4520 Metric), SMD Comm C0G HV	View
C1812C102JGGACTU	KEMET, 1000pF ±5% 2000V (2kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric), SMD Comm C0G HV	View
C2220C471KHGAC7800	KEMET, 470pF ±10% 3000V (3kV) Ceramic Capacitor C0G, NP0 2220 (5750 Metric), SMD Comm C0G HV	View
C1825C183JCGAC7800	KEMET, 0.018µF ±5% 500V Ceramic Capacitor C0G, NP0 1825 (4564 Metric), SMD Comm C0G HV	View
C0805C561JCGAC7800	KEMET, 560pF ±5% 500V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), SMD Comm C0G HV	View
C1206C272JBGAC7800	KEMET, 2700pF ±5% 630V Ceramic Capacitor C0G, NP0 1206 (3216 Metric), SMD Comm C0G HV	View
C1206C202JCGAC7800	KEMET, 2000pF ±5% 500V Ceramic Capacitor C0G, NP0 1206 (3216 Metric), SMD Comm C0G HV	View

C1210C103JDGAC7800

Part NumberC1210C103JDGAC7800
