Categories	Capacitors / Ceramic Capacitors
Datasheet	High Voltage C0G Dielectric, Commercial
Standard Package	2500
Manufacturer	KEMET
Series	SMD Comm C0G HV
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	4700pF
Tolerance	±5%
Voltage - Rated	630V
Temperature Coefficient	C0G, NP0
Operating Temperature	-55°C ~ 125°C
Features	Low ESL, High Voltage
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	1206 (3216 Metric)
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	-
Thickness (Max)	0.087" (2.20mm)
Lead Spacing	-
Lead Style	-

C1812C101KDGACTU	KEMET, 100pF ±10% 1000V (1kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric), SMD Comm C0G HV	View
C1206C470KGGACTU	KEMET, 47pF ±10% 2000V (2kV) Ceramic Capacitor C0G, NP0 1206 (3216 Metric), SMD Comm C0G HV	View
C1206C101KCGACTU	KEMET, 100pF ±10% 500V Ceramic Capacitor C0G, NP0 1206 (3216 Metric), SMD Comm C0G HV	View
C1812C121JHGAC7800	KEMET, 120pF ±5% 3000V (3kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric), SMD Comm C0G HV	View
C1206C150JDGAC7800	KEMET, 15pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 1206 (3216 Metric), SMD Comm C0G HV	View
C1206C331JBGACTU	KEMET, 330pF ±5% 630V Ceramic Capacitor C0G, NP0 1206 (3216 Metric), SMD Comm C0G HV	View
C2225C123JCGAC7800	KEMET, 0.012µF ±5% 500V Ceramic Capacitor C0G, NP0 2225 (5763 Metric), SMD Comm C0G HV	View
C1812C241JZGACTU	KEMET, 240pF ±5% 2500V (2.5kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric), SMD Comm C0G HV	View
C1808C220JHGAC7800	KEMET, 22pF ±5% 3000V (3kV) Ceramic Capacitor C0G, NP0 1808 (4520 Metric), SMD Comm C0G HV	View
C1812C271JHGAC7800	KEMET, 270pF ±5% 3000V (3kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric), SMD Comm C0G HV	View
C1812C330JHGAC7800	KEMET, 33pF ±5% 3000V (3kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric), SMD Comm C0G HV	View
C0805C101KCGACTU	KEMET, 100pF ±10% 500V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), SMD Comm C0G HV	View

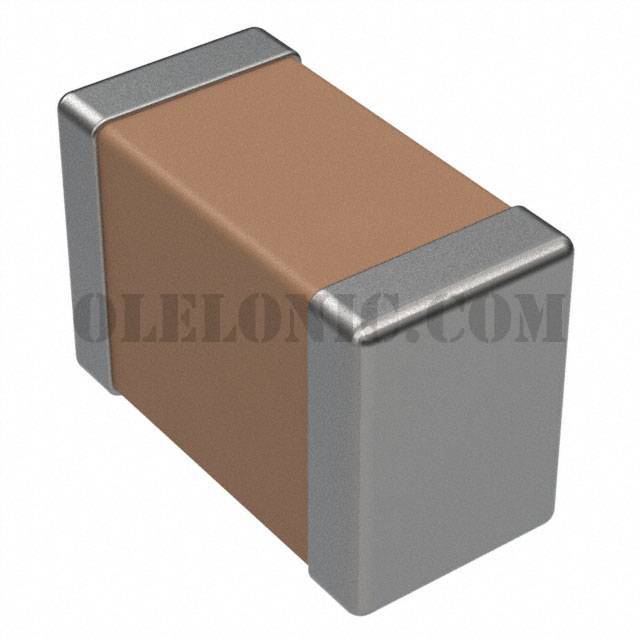

C1206C472JBGAC7800

Part NumberC1206C472JBGAC7800
