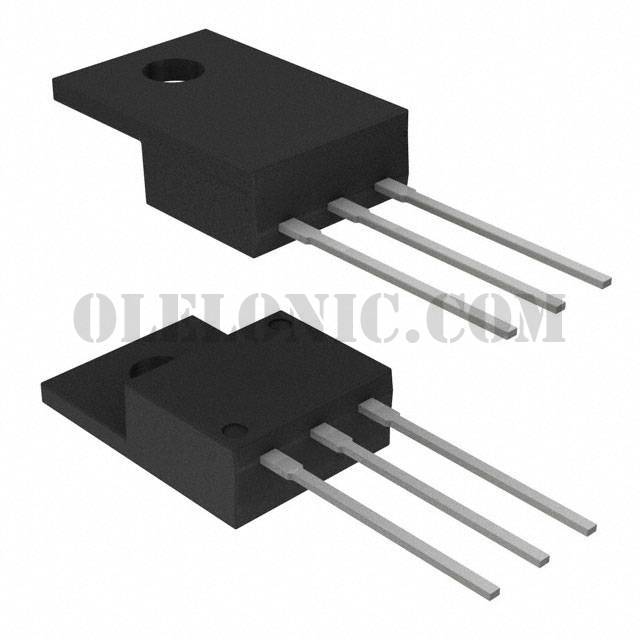

BXL4001

Part NumberBXL4001

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 75V 85A TO-220

DatasheetBXL4001

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 75V 85A (Ta) 1.75W (Ta), 75W (Tc) Through Hole TO-220(LS)

To learn about the specification of BXL4001, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BXL4001 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BXL4001.
We are offering BXL4001 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BXL4001 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

BXL4001

Standard Package

100

Manufacturer

ON Semiconductor

Series

Packaging

Bulk

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

75V

Current - Continuous Drain (Id) @ 25°C

85A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

12.4mOhm @ 43A, 10V

Vgs(th) (Max) @ Id

4V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

115nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

6700pF @ 20V

FET Feature

Power Dissipation (Max)

1.75W (Ta), 75W (Tc)

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

TO-220(LS)

Package / Case

TO-220-3
