BUK7K23-80EX

Part NumberBUK7K23-80EX

ManufacturerNexperia USA Inc.

DescriptionMOSFET 2 N-CH 80V 17A LFPAK56D

DatasheetBUK7K23-80E

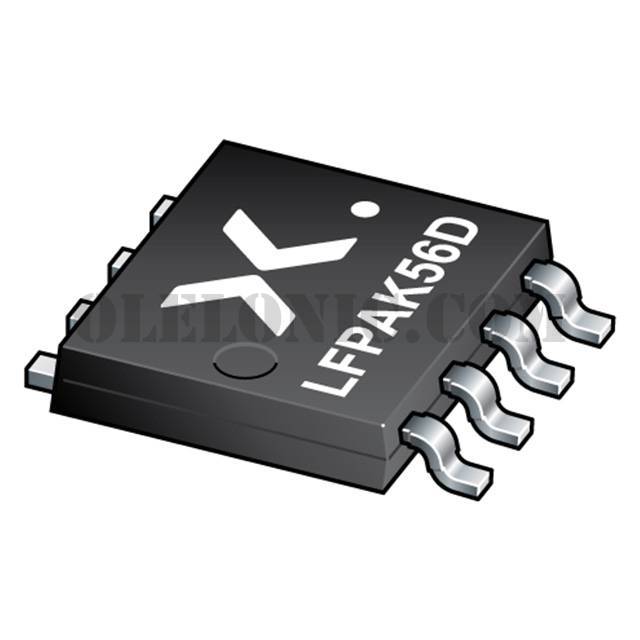

Package / CaseSOT-1205, 8-LFPAK56

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 80V 17A (Ta) 53W Surface Mount LFPAK56D

To learn about the specification of BUK7K23-80EX, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BUK7K23-80EX with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BUK7K23-80EX.
We are offering BUK7K23-80EX for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BUK7K23-80EX - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	BUK7K23-80E
Standard Package	1500
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25°C	17A (Ta)
Rds On (Max) @ Id, Vgs	23mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	22.8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1542pF @ 25V
Power - Max	53W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-1205, 8-LFPAK56
Supplier Device Package	LFPAK56D
