BUK7J1R4-40HX

BUK7J1R4-40HX

Part NumberBUK7J1R4-40HX

ManufacturerNexperia USA Inc.

DescriptionMOSFET N-CH 40V 120A LFPAK56

DatasheetBUK7J1R4-40H

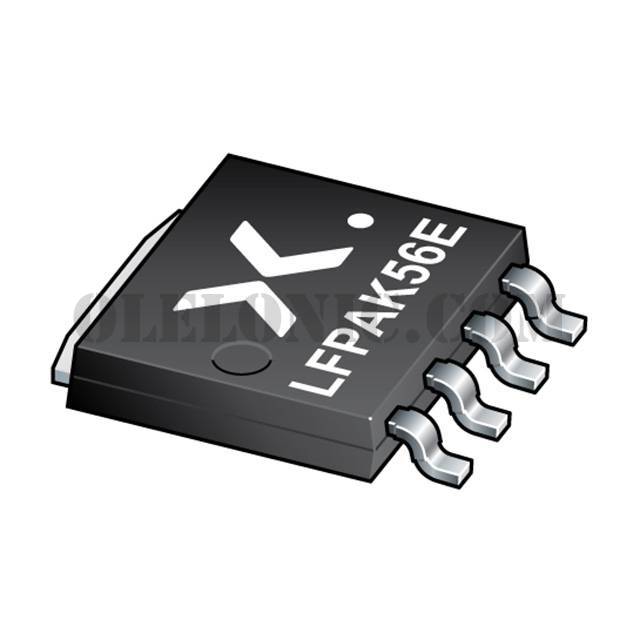

Package / CaseSOT-1023, 4-LFPAK

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 120A (Ta) 395W (Ta) Surface Mount LFPAK56, Power-SO8

To learn about the specification of BUK7J1R4-40HX, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BUK7J1R4-40HX with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BUK7J1R4-40HX.
We are offering BUK7J1R4-40HX for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BUK7J1R4-40HX - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	BUK7J1R4-40H
Standard Package	1500
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	120A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	3.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	126nC @ 10V
Vgs (Max)	+20V, -10V
Input Capacitance (Ciss) (Max) @ Vds	8155pF @ 25V
FET Feature	-
Power Dissipation (Max)	395W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LFPAK56, Power-SO8
Package / Case	SOT-1023, 4-LFPAK
