BTS7904SAKSA1

Part NumberBTS7904SAKSA1

ManufacturerInfineon Technologies

DescriptionMOSFET N/P-CH 55V/30V 40A TO220

DatasheetBTS7904S

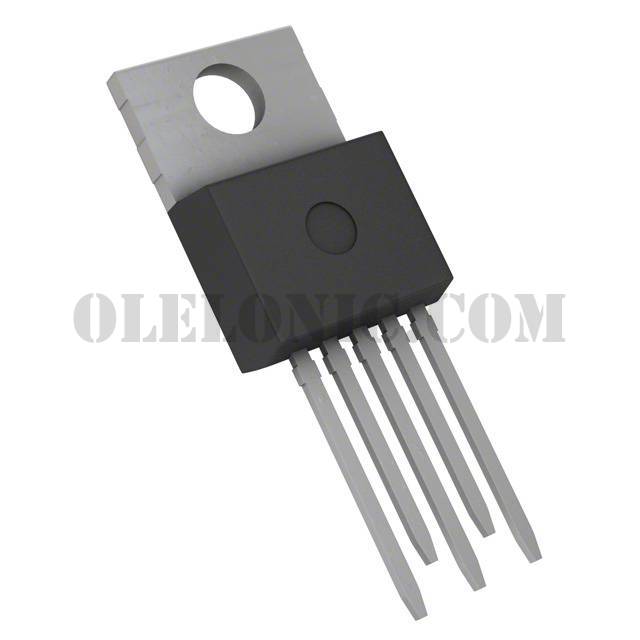

Package / CaseTO-220-5

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 55V, 30V 40A 69W, 96W Surface Mount PG-TO220-5-13

To learn about the specification of BTS7904SAKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BTS7904SAKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BTS7904SAKSA1.
We are offering BTS7904SAKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BTS7904SAKSA1 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

BTS7904S

Standard Package

500

Manufacturer

Infineon Technologies

Series

OptiMOS™

Packaging

Tube

Part Status

Obsolete

FET Type

N and P-Channel

FET Feature

Logic Level Gate

Drain to Source Voltage (Vdss)

55V, 30V

Current - Continuous Drain (Id) @ 25°C

40A

Rds On (Max) @ Id, Vgs

12mOhm @ 20A, 10V

Vgs(th) (Max) @ Id

2.2V @ 40µA

Gate Charge (Qg) (Max) @ Vgs

123nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

6100pF @ 25V

Power - Max

69W, 96W

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

TO-220-5

Supplier Device Package

PG-TO220-5-13
