BTS247ZE3062AATMA2

Part NumberBTS247ZE3062AATMA2

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 55V 33A TO220-5

DatasheetBTS247Z

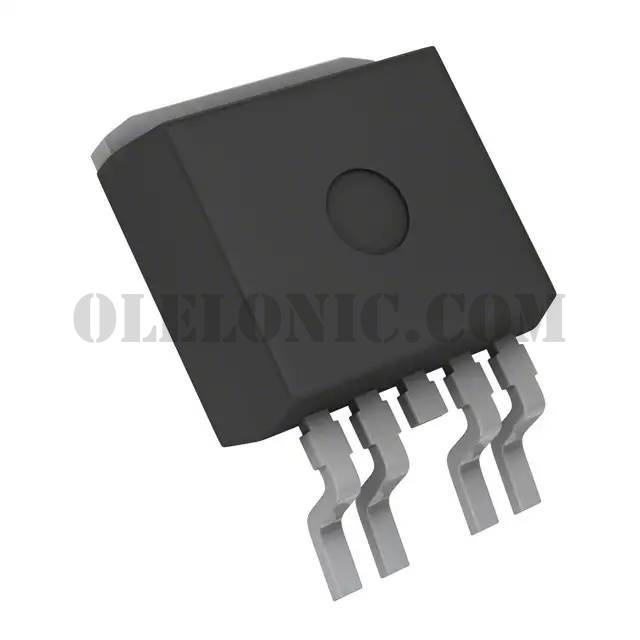

Package / CaseTO-263-5, D²Pak (4 Leads + Tab), TO-263BB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 55V 33A (Tc) 120W (Tc) Surface Mount PG-TO263-5-2

To learn about the specification of BTS247ZE3062AATMA2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BTS247ZE3062AATMA2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BTS247ZE3062AATMA2.
We are offering BTS247ZE3062AATMA2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BTS247ZE3062AATMA2 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

BTS247Z

Standard Package

1000

Manufacturer

Infineon Technologies

Series

TEMPFET®

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

55V

Current - Continuous Drain (Id) @ 25°C

33A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

18mOhm @ 12A, 10V

Vgs(th) (Max) @ Id

2V @ 90µA

Gate Charge (Qg) (Max) @ Vgs

90nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

1730pF @ 25V

FET Feature

Temperature Sensing Diode

Power Dissipation (Max)

120W (Tc)

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

PG-TO263-5-2

Package / Case

TO-263-5, D²Pak (4 Leads + Tab), TO-263BB
