BTS244ZNKSA1

Part NumberBTS244ZNKSA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 55V 35A TO220-5

DatasheetBTS244Z

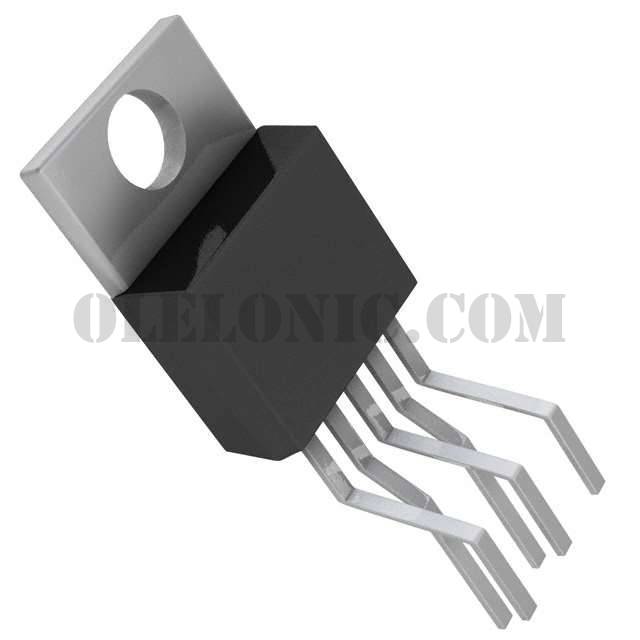

Package / CaseTO-220-5 Formed Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 55V 35A (Tc) 170W (Tc) Through Hole PG-TO220-5-3

To learn about the specification of BTS244ZNKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BTS244ZNKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BTS244ZNKSA1.
We are offering BTS244ZNKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BTS244ZNKSA1 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

BTS244Z

Standard Package

500

Manufacturer

Infineon Technologies

Series

TEMPFET®

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

55V

Current - Continuous Drain (Id) @ 25°C

35A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

13mOhm @ 19A, 10V

Vgs(th) (Max) @ Id

2V @ 130µA

Gate Charge (Qg) (Max) @ Vgs

130nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

2660pF @ 25V

FET Feature

Temperature Sensing Diode

Power Dissipation (Max)

170W (Tc)

Operating Temperature

-40°C ~ 175°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

PG-TO220-5-3

Package / Case

TO-220-5 Formed Leads
