Categories	Discrete Semiconductor Products / Thyristors - TRIACs
Datasheet	BT(A,B)12, T12xx
Standard Package	50
Manufacturer	STMicroelectronics
Series	-
Packaging	Tube
Part Status	Active
Triac Type	Logic - Sensitive Gate
Voltage - Off State	800V
Current - On State (It (RMS)) (Max)	12A
Voltage - Gate Trigger (Vgt) (Max)	1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm)	120A, 126A
Current - Gate Trigger (Igt) (Max)	10mA
Current - Hold (Ih) (Max)	15mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole

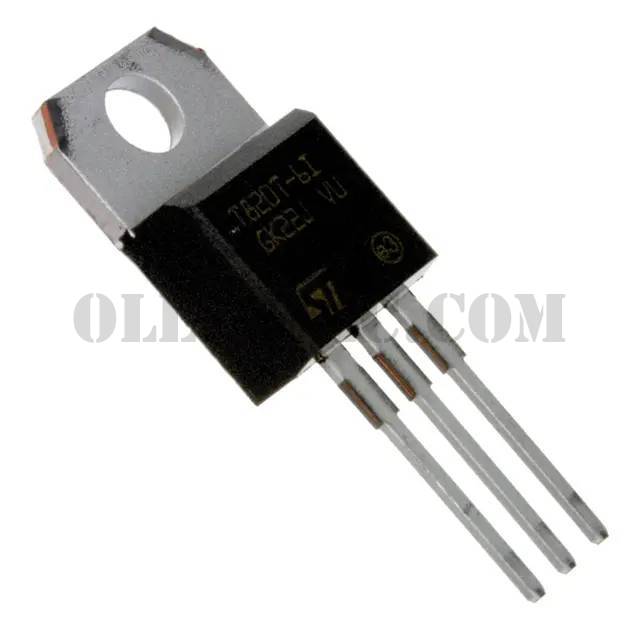

Package / Case	TO-220-3
Supplier Device Package	TO-220AB Insulated
Base Part Number	BTA12

BT136-800E,127	WeEn Semiconductors, TRIAC Logic - Sensitive Gate 800V 4A Through Hole TO-220AB,	View
T1610T-8G-TR	STMicroelectronics, TRIAC Logic - Sensitive Gate 800V 16A Surface Mount D2PAK,	View
BT131-600,116	WeEn Semiconductors, TRIAC Logic - Sensitive Gate 600V 1A Through Hole TO-92-3,	View
2N6071BTG	Littelfuse Inc., TRIAC Logic - Sensitive Gate 200V 4A Through Hole TO-225AA,	View
Z0107MUF	STMicroelectronics, TRIAC Logic - Sensitive Gate 600V 1A Surface Mount SMBflat-3L,	View
BT134W-600D,115	WeEn Semiconductors, TRIAC Logic - Sensitive Gate 600V 1A Surface Mount SC-73,	View
BT136-600D/DG,127	WeEn Semiconductors, TRIAC Logic - Sensitive Gate 600V 4A Through Hole TO-220AB,	View
ACS110-7SN	STMicroelectronics, TRIAC Logic - Sensitive Gate 700V 1A Surface Mount SOT-223, ASD™	View
Z0103MN0,135	WeEn Semiconductors, TRIAC Logic - Sensitive Gate 600V 1A Surface Mount SC-73,	View
MAC228A8G	Littelfuse Inc., TRIAC Logic - Sensitive Gate 600V 8A Through Hole TO-220AB,	View
ACT108-600E,126	WeEn Semiconductors, TRIAC Logic - Sensitive Gate 600V 800mA Through Hole TO-92-3,	View
BTA312B-600E,118	WeEn Semiconductors, TRIAC Logic - Sensitive Gate 600V 12A Surface Mount D2PAK,	View

BTA12-800SWRG

Part NumberBTA12-800SWRG
