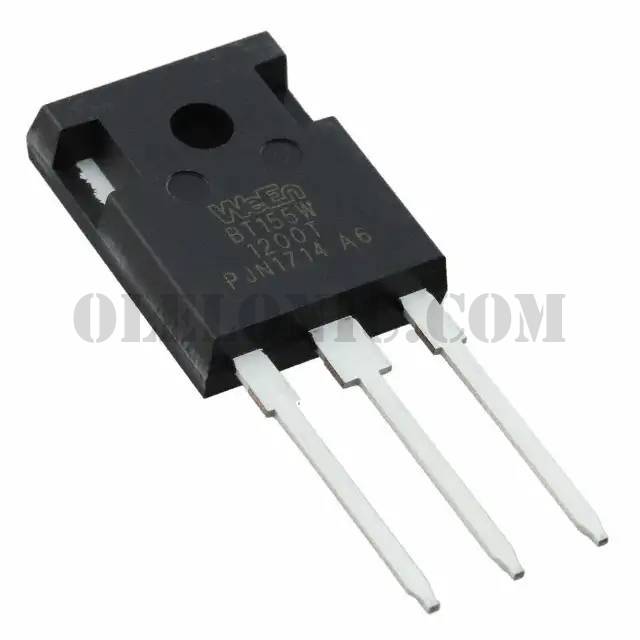

BT155W-1200TQ
BT155W-1200TQ
Part Number BT155W-1200TQ
Description SCR 1200V 79A TO247-3
Package / Case TO-247-3
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description SCR 1.2kV 79A Standard Recovery Through Hole TO-247-3
To learn about the specification of BT155W-1200TQ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BT155W-1200TQ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BT155W-1200TQ.
We are offering BT155W-1200TQ for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
BT155W-1200TQ - Product Attributes
Categories
Discrete Semiconductor Products / Thyristors - SCRs
Datasheet BT155W-1200T
Standard Package 240
Manufacturer WeEn Semiconductors
Series -
Packaging Tube
Part Status Active
Voltage - Off State 1.2kV
Voltage - Gate Trigger (Vgt) (Max) 1V
Current - Gate Trigger (Igt) (Max) 50mA
Voltage - On State (Vtm) (Max) 1.5V
Current - On State (It (AV)) (Max) 50A
Current - On State (It (RMS)) (Max) 79A
Current - Hold (Ih) (Max) 200mA
Current - Off State (Max) 3mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 650A, 715A
SCR Type Standard Recovery
Operating Temperature 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247-3
