BSC500N20NS3GATMA1

BSC500N20NS3GATMA1

Part NumberBSC500N20NS3GATMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 200V 24A TDSON-8

DatasheetBSC500N20NS3 G

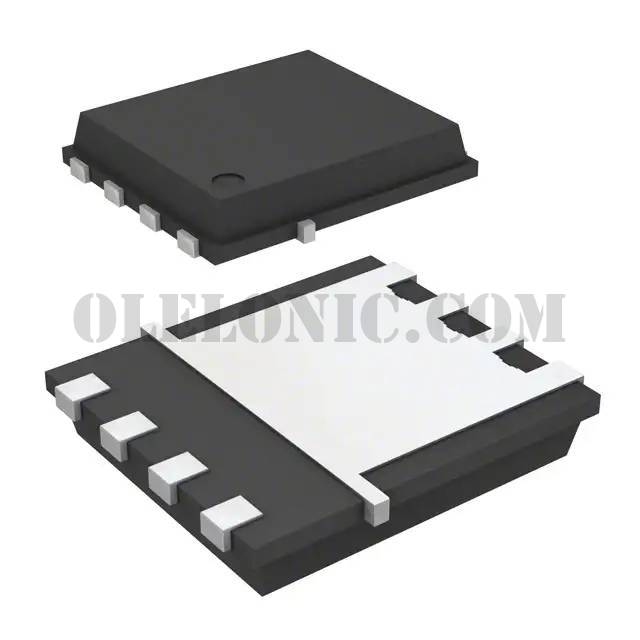

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 200V 24A (Tc) 96W (Tc) Surface Mount PG-TDSON-8-1

To learn about the specification of BSC500N20NS3GATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSC500N20NS3GATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSC500N20NS3GATMA1.
We are offering BSC500N20NS3GATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BSC500N20NS3GATMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	BSC500N20NS3 G
Standard Package	5000
Manufacturer	Infineon Technologies
Series	OptiMOS™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25°C	24A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	50mOhm @ 22A, 10V
Vgs(th) (Max) @ Id	4V @ 60µA
Gate Charge (Qg) (Max) @ Vgs	15nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1580pF @ 100V
FET Feature	-
Power Dissipation (Max)	96W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8-1
Package / Case	8-PowerTDFN
