BSB056N10NN3GXUMA1
BSB056N10NN3GXUMA1

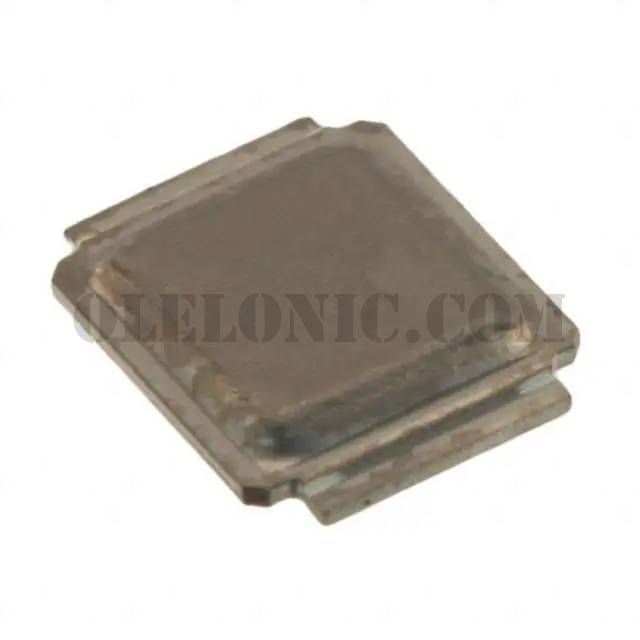

Part Number BSB056N10NN3GXUMA1 Description MOSFET N-CH 100V 9A WDSON-2 Package / Case 3-WDSONUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description N-Channel 100V 9A (Ta), 83A (Tc) 2.8W (Ta), 78W (Tc) Surface Mount MG-WDSON-2, CanPAK M™
To learn about the specification of BSB056N10NN3GXUMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSB056N10NN3GXUMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSB056N10NN3GXUMA1.
We are offering BSB056N10NN3GXUMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
BSB056N10NN3GXUMA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet BSB056N10NN3 G Standard Package 1 Manufacturer Infineon Technologies Series OptiMOS™ Packaging Cut Tape (CT) Part Status Active FET Type N-Channel Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 100V Current - Continuous Drain (Id) @ 25°C 9A (Ta), 83A (Tc) Drive Voltage (Max Rds On, Min Rds On) 6V, 10V Rds On (Max) @ Id, Vgs 5.6mOhm @ 30A, 10V Vgs(th) (Max) @ Id 3.5V @ 100µA Gate Charge (Qg) (Max) @ Vgs 74nC @ 10V Vgs (Max) ±20V Input Capacitance (Ciss) (Max) @ Vds 5500pF @ 50V FET Feature - Power Dissipation (Max) 2.8W (Ta), 78W (Tc) Operating Temperature -40°C ~ 150°C (TJ) Mounting Type Surface Mount Supplier Device Package MG-WDSON-2, CanPAK M™ Package / Case 3-WDSON
