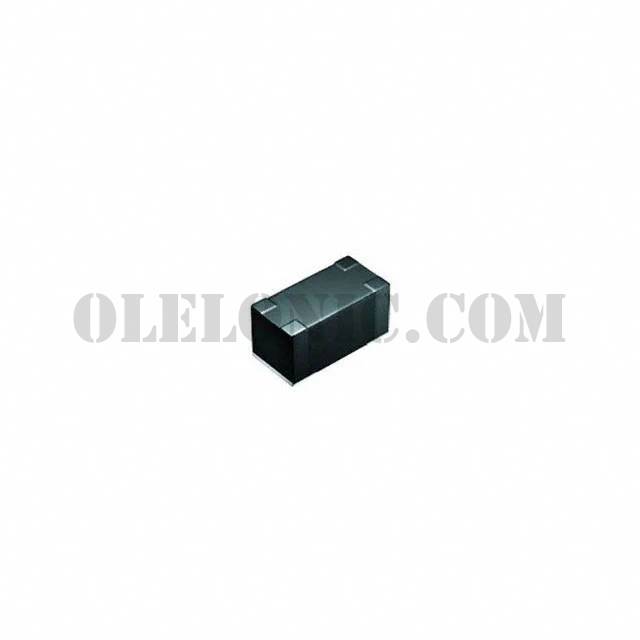

BRC2016T150K


BRC2016T150K

Part NumberBRC2016T150K

Manufacturer

Description

Datasheet

Package / Case0806 (2016 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

BRC2016T150K - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerTaiyo Yuden
SeriesBR, C Type
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance15µH
Tolerance±10%
Current Rating (Amps)410mA
Current - Saturation400mA
ShieldingUnshielded
DC Resistance (DCR)780mOhm Max
Q @ Freq-
Frequency - Self Resonant28MHz
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / Case0806 (2016 Metric)
Supplier Device Package0806 (2016 Metric)
Size / Dimension0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)0.071" (1.80mm)
