Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	BFU520Y
Standard Package	1
Manufacturer	NXP USA Inc.
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	2 NPN (Dual)
Voltage - Collector Emitter Breakdown (Max)	12V
Frequency - Transition	10GHz
Noise Figure (dB Typ @ f)	0.65dB @ 900MHz
Gain	19dB
Power - Max	450mW
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 5mA, 8V
Current - Collector (Ic) (Max)	30mA
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount

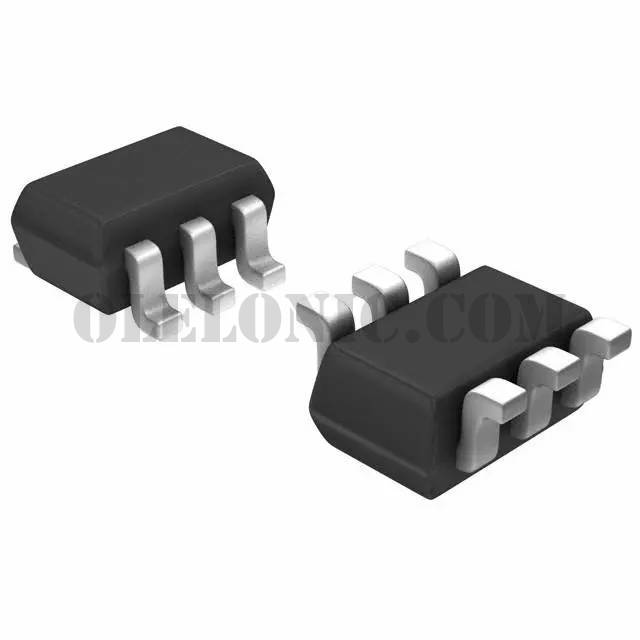

Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SOT-363
Base Part Number	BFU520
