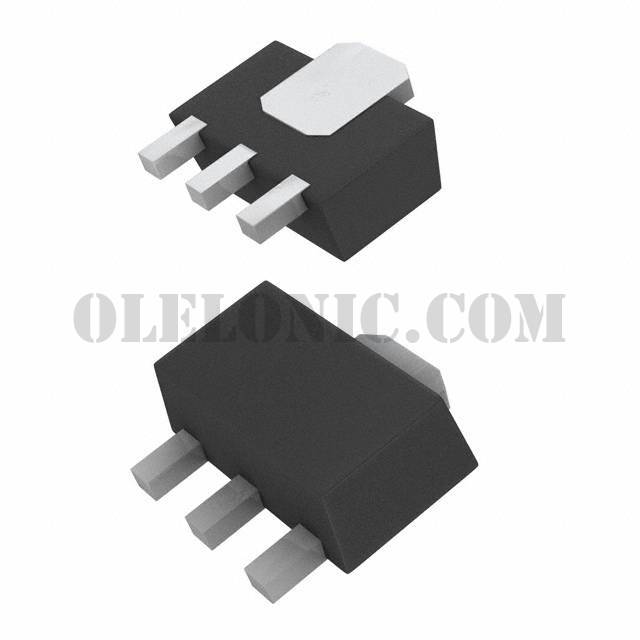

BCX56-TP

BCX56-TP

Part NumberBCX56-TP

ManufacturerMicro Commercial Co

DescriptionNPN,TRANSISTORS,SOT-89 PACKAGE

DatasheetBCX56, BCX56-10, BCX56-16

Package / CaseTO-243AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 80V 1A 130MHz 500mW Surface Mount SOT-89

To learn about the specification of BCX56-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BCX56-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BCX56-TP.
We are offering BCX56-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BCX56-TP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	BCX56, BCX56-10, BCX56-16
Standard Package	1000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	63 @ 150mA, 2V
Power - Max	500mW
Frequency - Transition	130MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-243AA
Supplier Device Package	SOT-89
