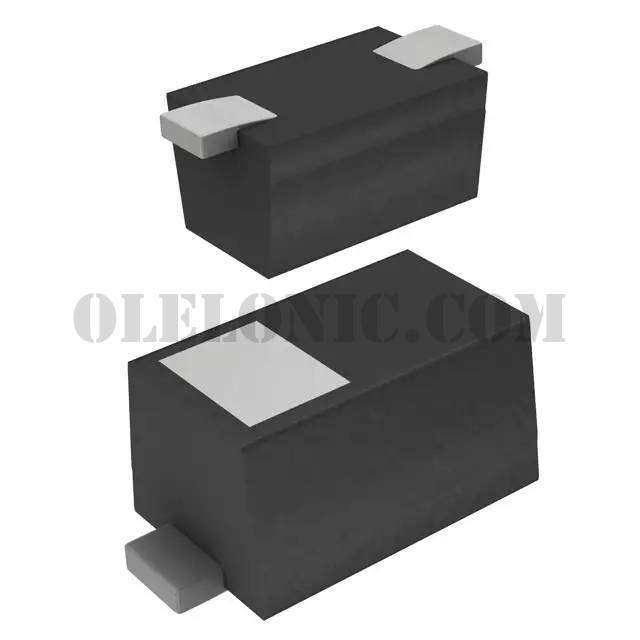

BAV3004X-TP

BAV3004X-TP

Part NumberBAV3004X-TP

ManufacturerMicro Commercial Co

Description150MWSWITCHING DIODESOD-523

DatasheetBAV3004X

Package / CaseSC-79, SOD-523

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 300V 225mA (DC) Surface Mount SOD-523

To learn about the specification of BAV3004X-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAV3004X-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAV3004X-TP.
We are offering BAV3004X-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAV3004X-TP - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAV3004X
Standard Package	8000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	300V
Current - Average Rectified (Io)	225mA (DC)
Voltage - Forward (Vf) (Max) @ If	1.25V @ 200mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	100nA @ 240V
Capacitance @ Vr, F	1pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
Operating Temperature - Junction	-65°C ~ 150°C
