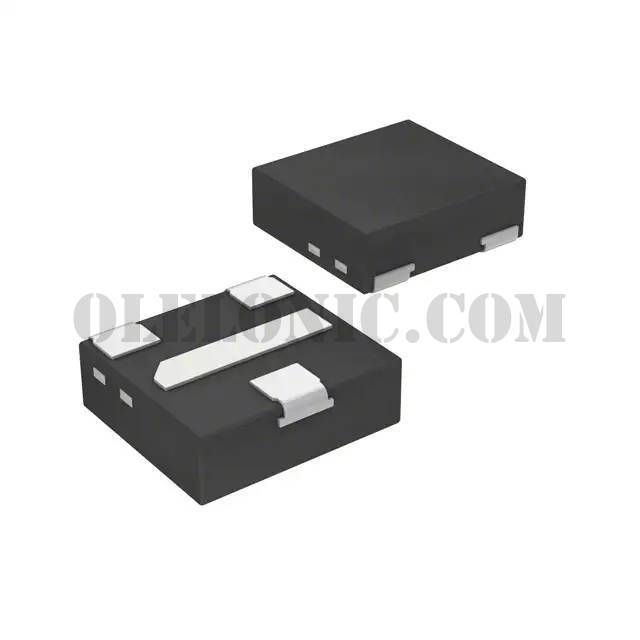

BAV23QAZ

BAV23QAZ

Part NumberBAV23QAZ

ManufacturerNexperia USA Inc.

DescriptionBAV23QA/SOT1215/DFN1010D-3

DatasheetBAV23QA

Package / Case3-XDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 250V 330mA (DC) Surface Mount DFN1010D-3

To learn about the specification of BAV23QAZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAV23QAZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAV23QAZ.
We are offering BAV23QAZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAV23QAZ - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAV23QA
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	250V
Current - Average Rectified (Io)	330mA (DC)
Voltage - Forward (Vf) (Max) @ If	1.25V @ 200mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	100nA @ 200V
Capacitance @ Vr, F	2pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	3-XDFN Exposed Pad
Supplier Device Package	DFN1010D-3
Operating Temperature - Junction	150°C (Max)
