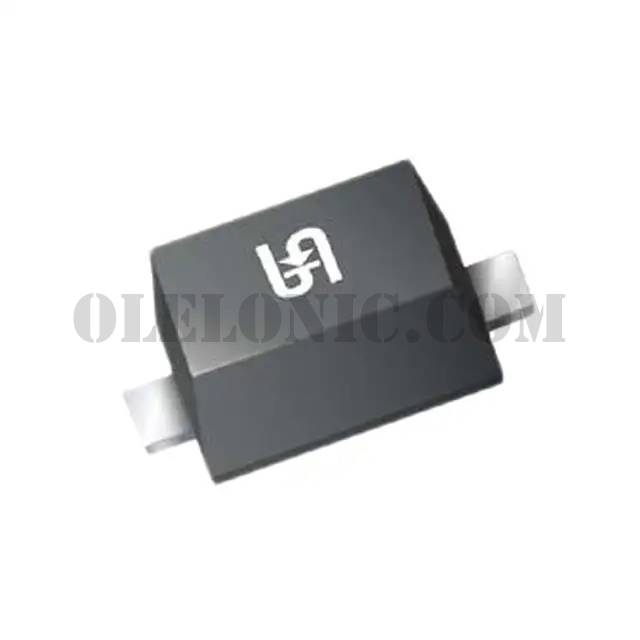

BAV21WS RRG

BAV21WS RRG

Part NumberBAV21WS RRG

ManufacturerTaiwan Semiconductor Corporation

DescriptionDIODE GEN PURP 250V 200MA SOD323

DatasheetBAV19WS, 20WS, 21WS

Package / CaseSC-90, SOD-323F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 250V 200mA Surface Mount SOD-323F

To learn about the specification of BAV21WS RRG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAV21WS RRG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAV21WS RRG.
We are offering BAV21WS RRG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAV21WS RRG - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAV19WS, 20WS, 21WS
Standard Package	1
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	250V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	1.25V @ 200mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	100nA @ 200V
Capacitance @ Vr, F	5pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-90, SOD-323F
Supplier Device Package	SOD-323F
Operating Temperature - Junction	-65°C ~ 150°C
