Home/Product Catalog/Discrete Semiconductor Products / Diodes - Rectifiers - Single/ BAV20,113

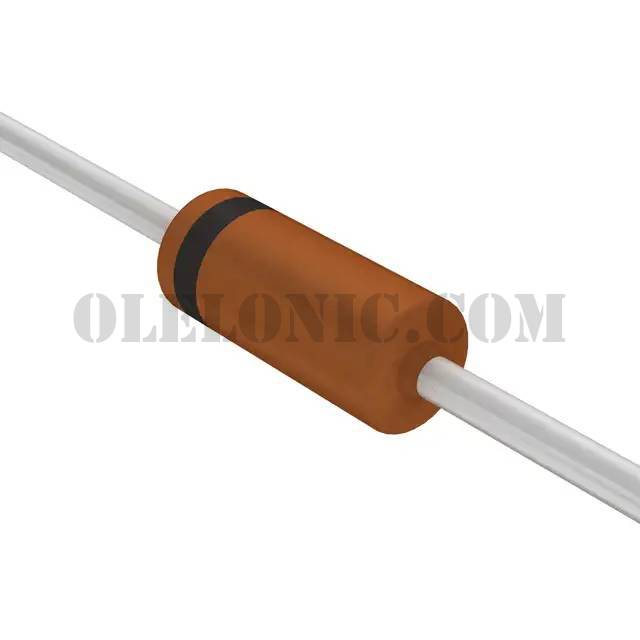

BAV20,113

BAV20,113

Part NumberBAV20,113

ManufacturerNexperia USA Inc.

DescriptionDIODE GEN PURP 150V 250MA ALF2

DatasheetBAV20, BAV21

Package / CaseDO-204AH, DO-35, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 150V 250mA Through Hole ALF2

To learn about the specification of BAV20,113, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAV20,113 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAV20,113.
We are offering BAV20,113 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAV20,113 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAV20, BAV21
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	150V
Current - Average Rectified (Io)	250mA
Voltage - Forward (Vf) (Max) @ If	1.25V @ 200mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	100nA @ 150V
Capacitance @ Vr, F	5pF @ 0V, 1MHz
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Supplier Device Package	ALF2
Operating Temperature - Junction	175°C (Max)
