BAV19WSTR

BAV19WSTR

Part NumberBAV19WSTR

ManufacturerSMC Diode Solutions

DescriptionDIODE GEN PURP 100V 200MA SOD323

DatasheetBAV19WS - BAV21WS

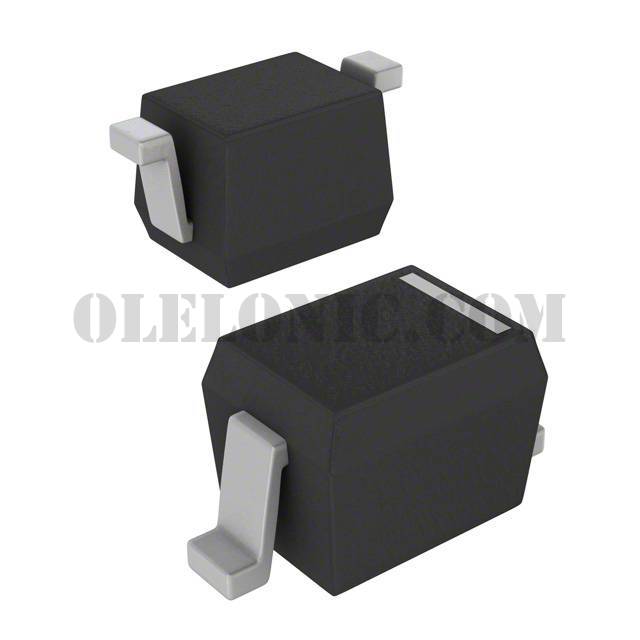

Package / CaseSC-76, SOD-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 100V 200mA Surface Mount SOD-323

To learn about the specification of BAV19WSTR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAV19WSTR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAV19WSTR.
We are offering BAV19WSTR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAV19WSTR - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAV19WS - BAV21WS
Standard Package	1
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	100nA @ 100V
Capacitance @ Vr, F	5pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
Operating Temperature - Junction	-65°C ~ 150°C
