Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAV116S92
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	85V
Current - Average Rectified (Io)	215mA
Voltage - Forward (Vf) (Max) @ If	1.25V @ 150mA
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	3µs
Current - Reverse Leakage @ Vr	5nA @ 75V
Capacitance @ Vr, F	1.5pF @ 0V, 1MHz
Mounting Type	Surface Mount

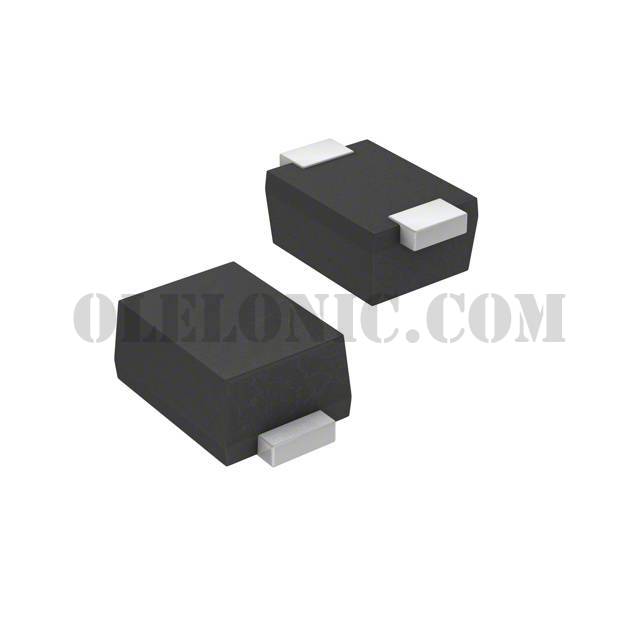

Package / Case	SOD-923
Supplier Device Package	SOD-923
Operating Temperature - Junction	-55°C ~ 150°C
