BAT54SWFILMY

Part NumberBAT54SWFILMY

ManufacturerSTMicroelectronics

DescriptionDIODE ARRAY

DatasheetBAT54-Y Datasheet

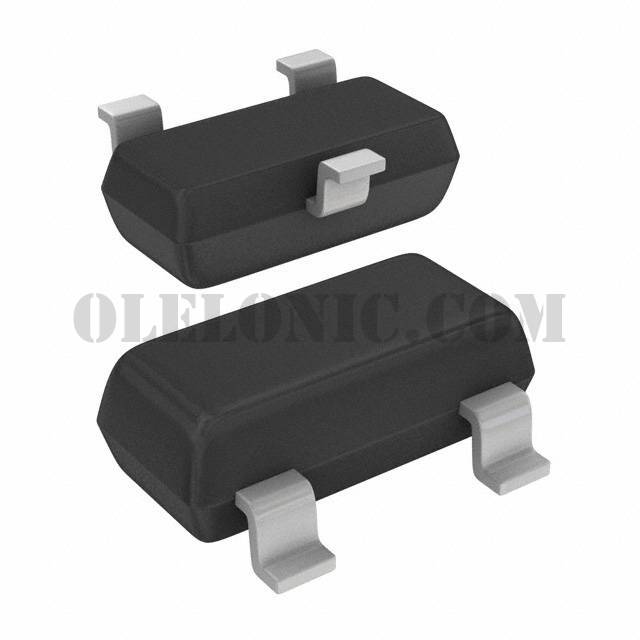

Package / CaseSC-70, SOT-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Series Connection Schottky 40V 300mA (DC) Surface Mount SC-70, SOT-323

To learn about the specification of BAT54SWFILMY, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAT54SWFILMY with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAT54SWFILMY.
We are offering BAT54SWFILMY for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAT54SWFILMY - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	BAT54-Y Datasheet
Standard Package	1
Manufacturer	STMicroelectronics
Series	Automotive, AEC-Q101, ECOPACK®2
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	1 Pair Series Connection
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io) (per Diode)	300mA (DC)
Voltage - Forward (Vf) (Max) @ If	900mV @ 100mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	5ns
Current - Reverse Leakage @ Vr	1µA @ 30V
Operating Temperature - Junction	-40°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Supplier Device Package	SOT-323-3
