BAT54DW-7-F

Part NumberBAT54DW-7-F

ManufacturerDiodes Incorporated

DescriptionDIODE ARRAY SCHOTTKY 30V SOT363

DatasheetBAT54DW Datasheet

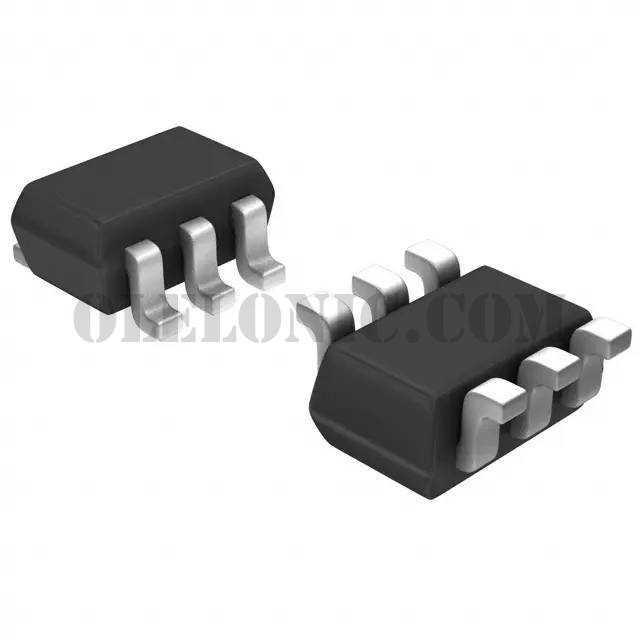

Package / Case6-TSSOP, SC-88, SOT-363

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 2 Independent Schottky 30V 100mA Surface Mount 6-TSSOP, SC-88, SOT-363

To learn about the specification of BAT54DW-7-F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAT54DW-7-F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAT54DW-7-F.
We are offering BAT54DW-7-F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAT54DW-7-F - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	BAT54DW Datasheet
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Configuration	2 Independent
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io) (per Diode)	100mA
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	5ns
Current - Reverse Leakage @ Vr	2µA @ 25V
Operating Temperature - Junction	-65°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SOT-363
Base Part Number	BAT54DW
