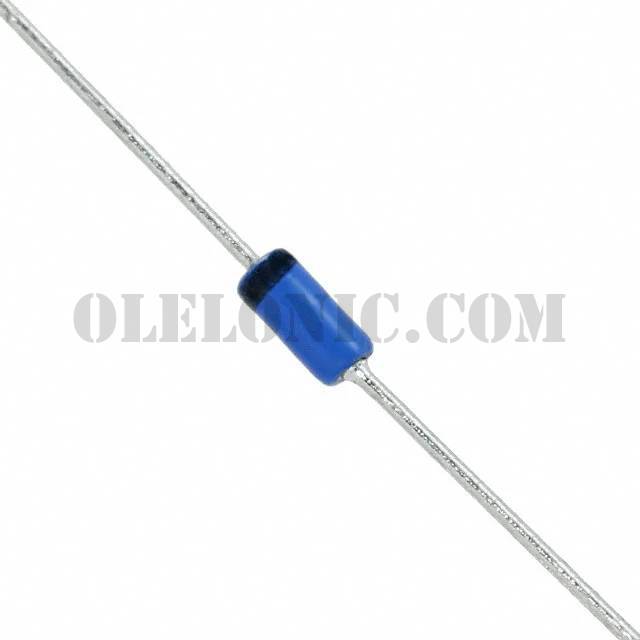

BAT48

BAT48

Part NumberBAT48

ManufacturerSTMicroelectronics

DescriptionDIODE SCHOTTKY 40V 350MA DO35

DatasheetBAT48

Package / CaseDO-204AH, DO-35, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 40V 350mA (DC) Through Hole DO-35

To learn about the specification of BAT48, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAT48 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAT48.
We are offering BAT48 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAT48 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAT48
Standard Package	4000
Manufacturer	STMicroelectronics
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	350mA (DC)
Voltage - Forward (Vf) (Max) @ If	750mV @ 200mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	25µA @ 40V
Capacitance @ Vr, F	20pF @ 0V, 1MHz
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Supplier Device Package	DO-35
Operating Temperature - Junction	-65°C ~ 125°C
Base Part Number	BAT48
