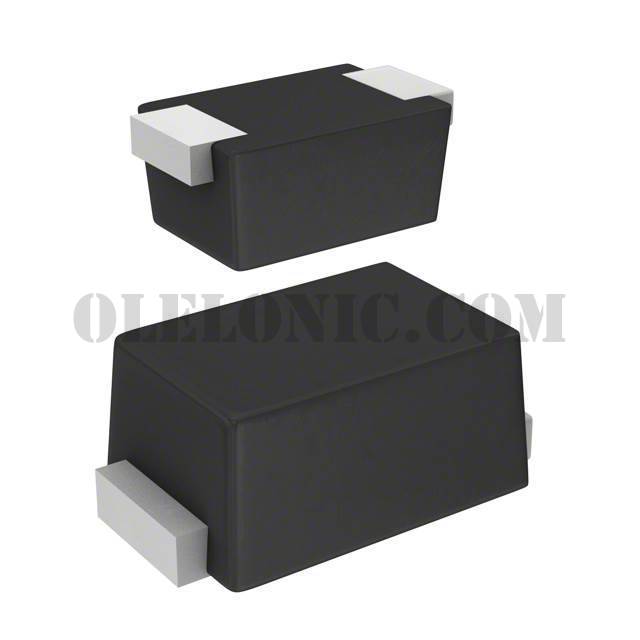

BAT30LFILM

Part NumberBAT30LFILM

ManufacturerSTMicroelectronics

DescriptionDIODE SCHOTTKY 30V 300MA SOD923

DatasheetBAT30

Package / CaseSOD-923

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 300mA (DC) Surface Mount SOD-923

To learn about the specification of BAT30LFILM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAT30LFILM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAT30LFILM.
We are offering BAT30LFILM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAT30LFILM - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Single

Datasheet

BAT30

Standard Package

10000

Manufacturer

STMicroelectronics

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

30V

Current - Average Rectified (Io)

300mA (DC)

Voltage - Forward (Vf) (Max) @ If

530mV @ 300mA

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr

5µA @ 30V

Capacitance @ Vr, F

22pF @ 0V, 1MHz

Mounting Type

Surface Mount

Package / Case

SOD-923

Supplier Device Package

SOD-923

Operating Temperature - Junction

150°C (Max)

Base Part Number

BAT30L
