BAT30-07P6FILM

Part NumberBAT30-07P6FILM

ManufacturerSTMicroelectronics

DescriptionDIODE ARRAY SCHOTTKY 30V SOT666

DatasheetBAT30

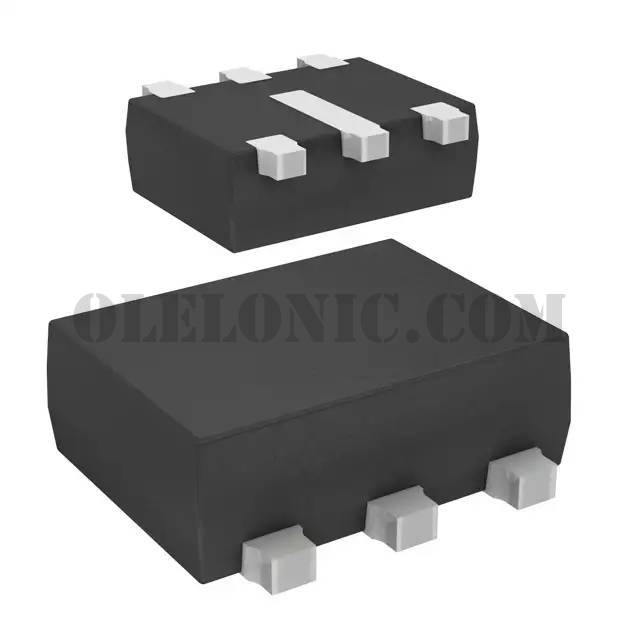

Package / CaseSOT-563, SOT-666

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 2 Independent Schottky 30V 300mA (DC) Surface Mount SOT-563, SOT-666

To learn about the specification of BAT30-07P6FILM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAT30-07P6FILM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAT30-07P6FILM.
We are offering BAT30-07P6FILM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAT30-07P6FILM - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Arrays

Datasheet

BAT30

Standard Package

3000

Manufacturer

STMicroelectronics

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Diode Configuration

2 Independent

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

30V

Current - Average Rectified (Io) (per Diode)

300mA (DC)

Voltage - Forward (Vf) (Max) @ If

530mV @ 300mA

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr

5µA @ 30V

Operating Temperature - Junction

150°C (Max)

Mounting Type

Surface Mount

Package / Case

SOT-563, SOT-666

Supplier Device Package

SOT-666

Base Part Number

BAT30-07
